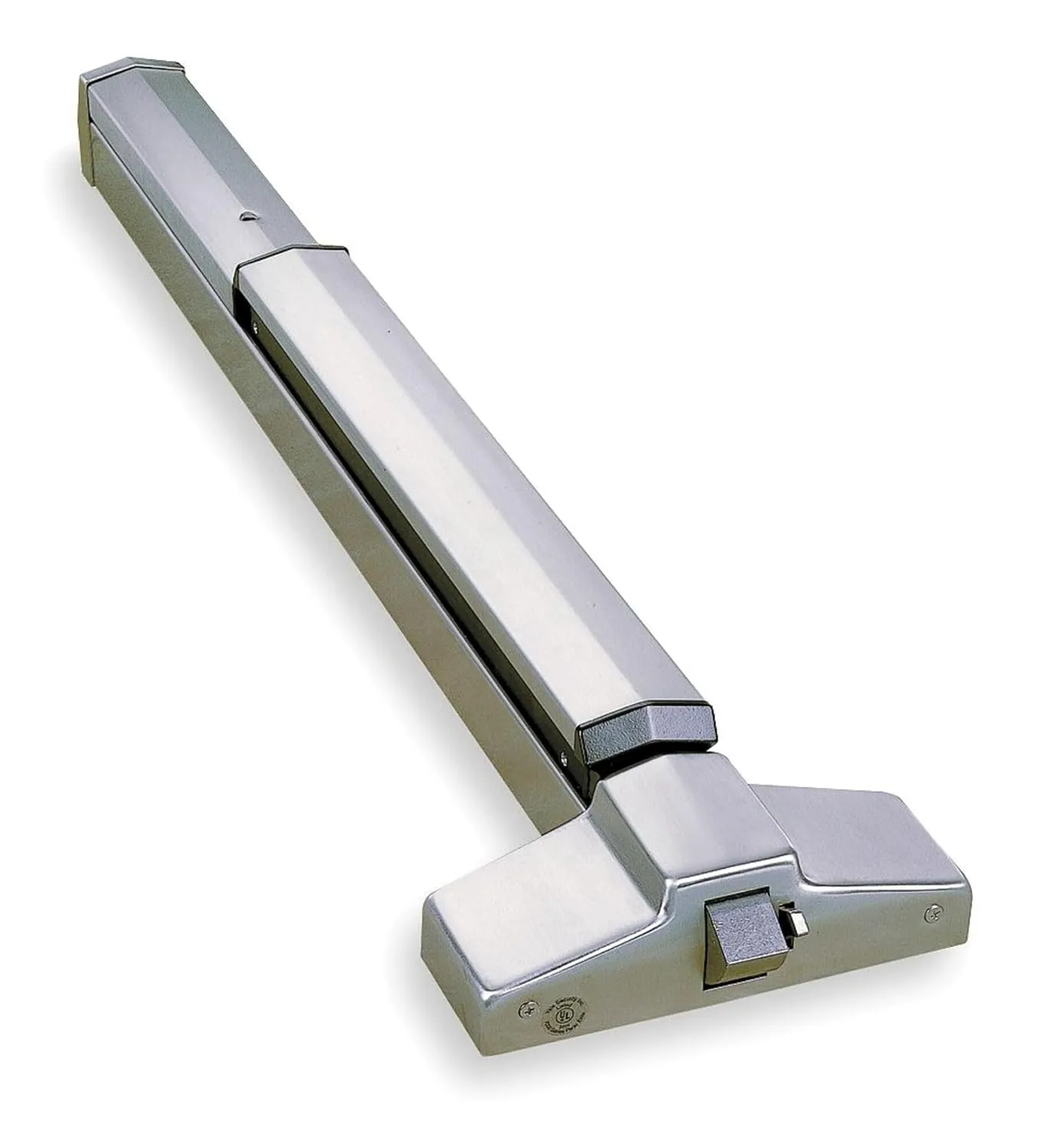

The 7100(F) is a rim exit device to be used with single doors or pairs of doors constructed of metal, wood or composite materials. Designed for application in high-use areas, the 7100(F) comes in a variety of finishes and can be combined with a variety of trims to match any desired style.

• Designed for wide stile doors
• 3/4" throw deadlocking stainless steel pullman latchbolt
• Electroplated ferrous components provide corrosion resistance
• Available in double cylinder function (handing must be specified)

• Non-handed for easy installation
• Single swing doors
• Pairs of doors with removable mullions
• Metal, wood or composite door materials

Door Opening Width: -24 for 24" (60cm) doors
-36 for 30" - 36" (76cm - 91cm) doors
-48 for 36" - 48" (91cm - 122cm) doors

Optional sizes can be special ordered. Consult Technical Product Support.

Door Thickness: 1-3/4" (44mm) standard. Optional door thicknesses available to 4-1/2"; specify door thickness when ordering.

Minimum Stile Width: 4-1/2" (114mm)

Projection: 3-1/4" (83mm) active, 2-3/4" (70mm) dogged

Latchbolt: 3/4" (19mm) deadlocking stainless steel pullman-type

Strike: 757F

Fasteners: Machine screws and wood door fasteners standard for panic hardware. Sex nuts and bolts supplied standard for fire exit hardware.

Trims: 620F series escutcheon trim, 630F series pull/thumbpiece trim, 680F series offset pull trim, 540F series rose trim, 121NL cylinder only.

Dogging: Hex key dogging supplied standard on panic devices

Warranty: 5-year limited

• Item Weight ‏ : ‎ 18 Pounds
• Date First Available ‏ : ‎ September 23, 2016
• Manufacturer ‏ : ‎ Yale Commercial Hardware
