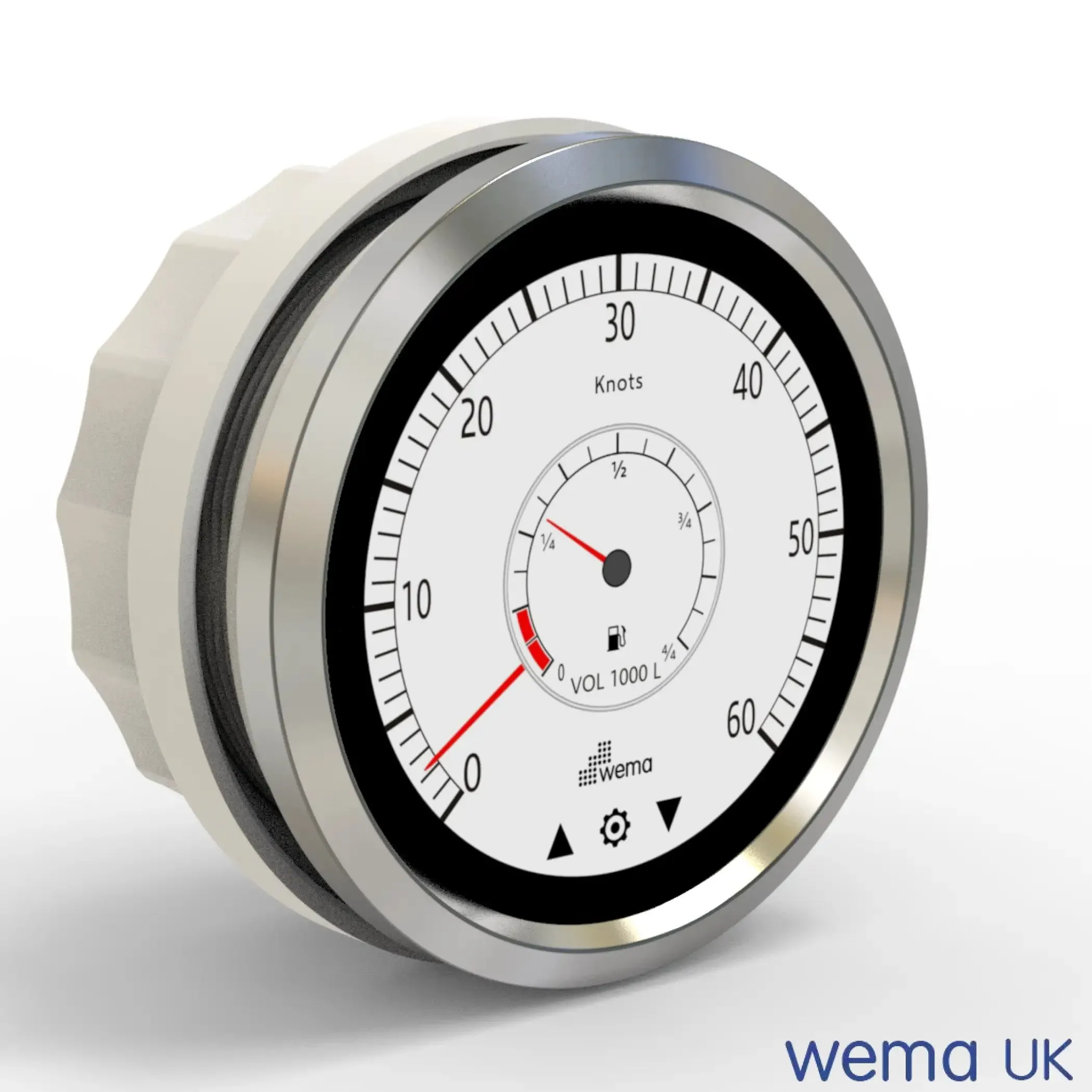

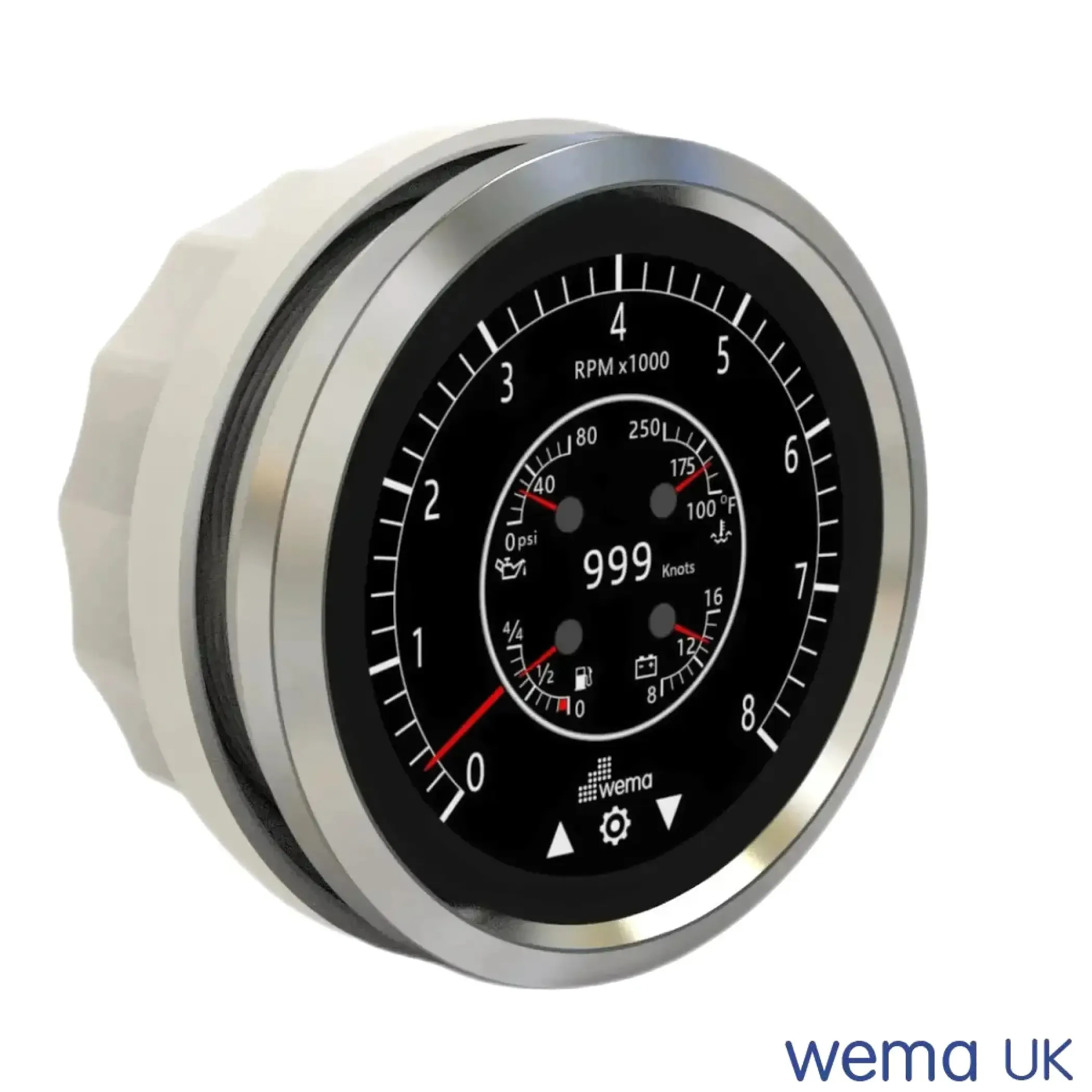

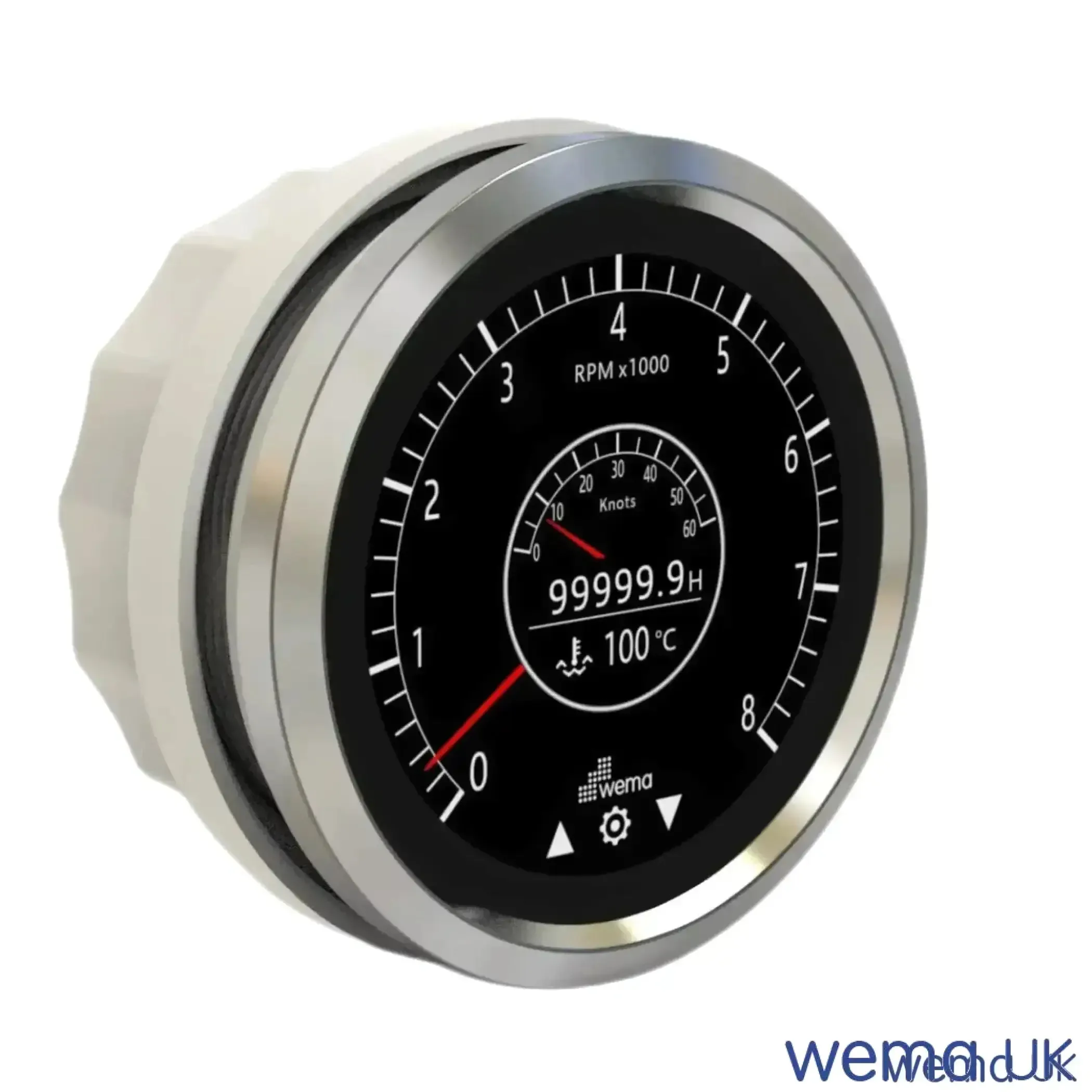

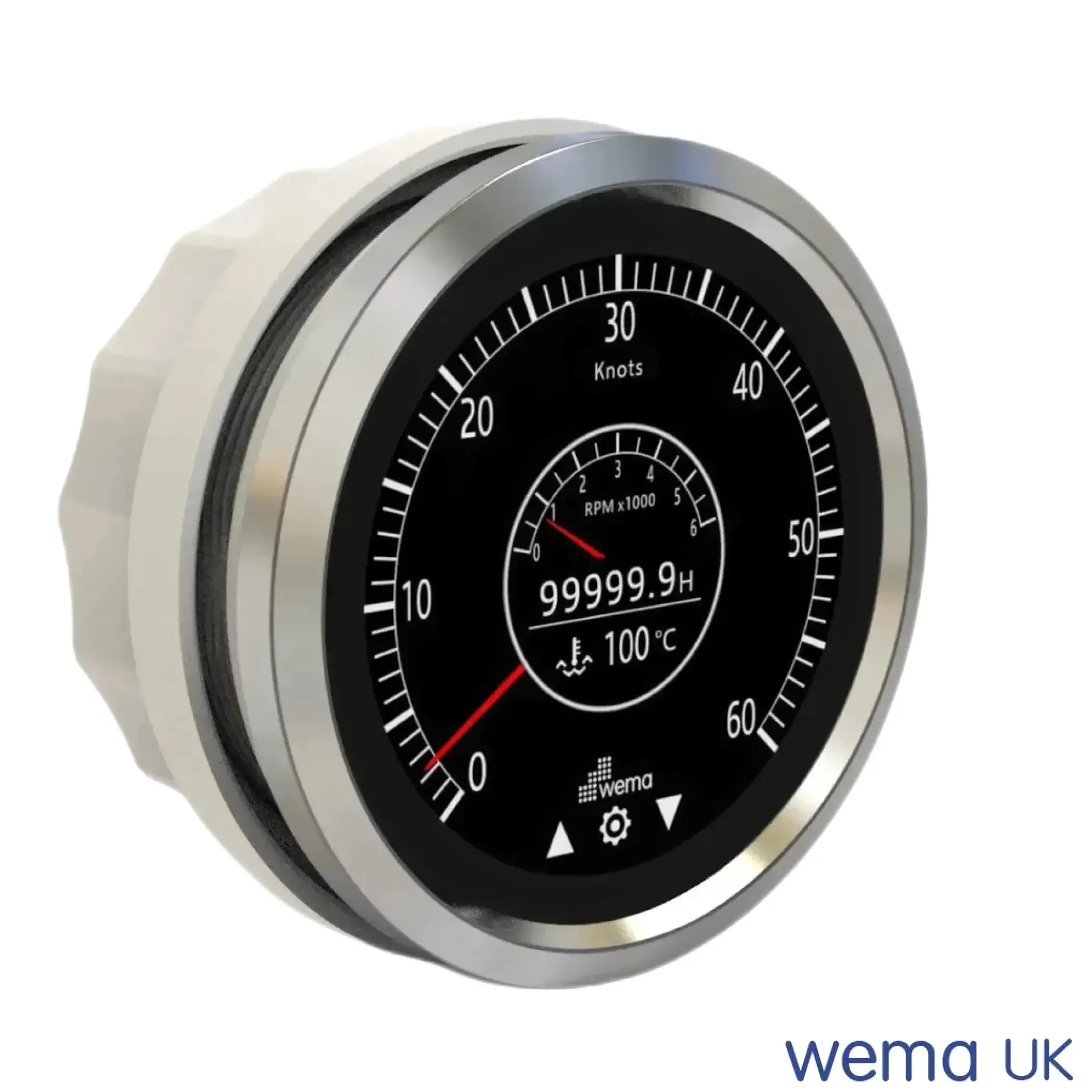

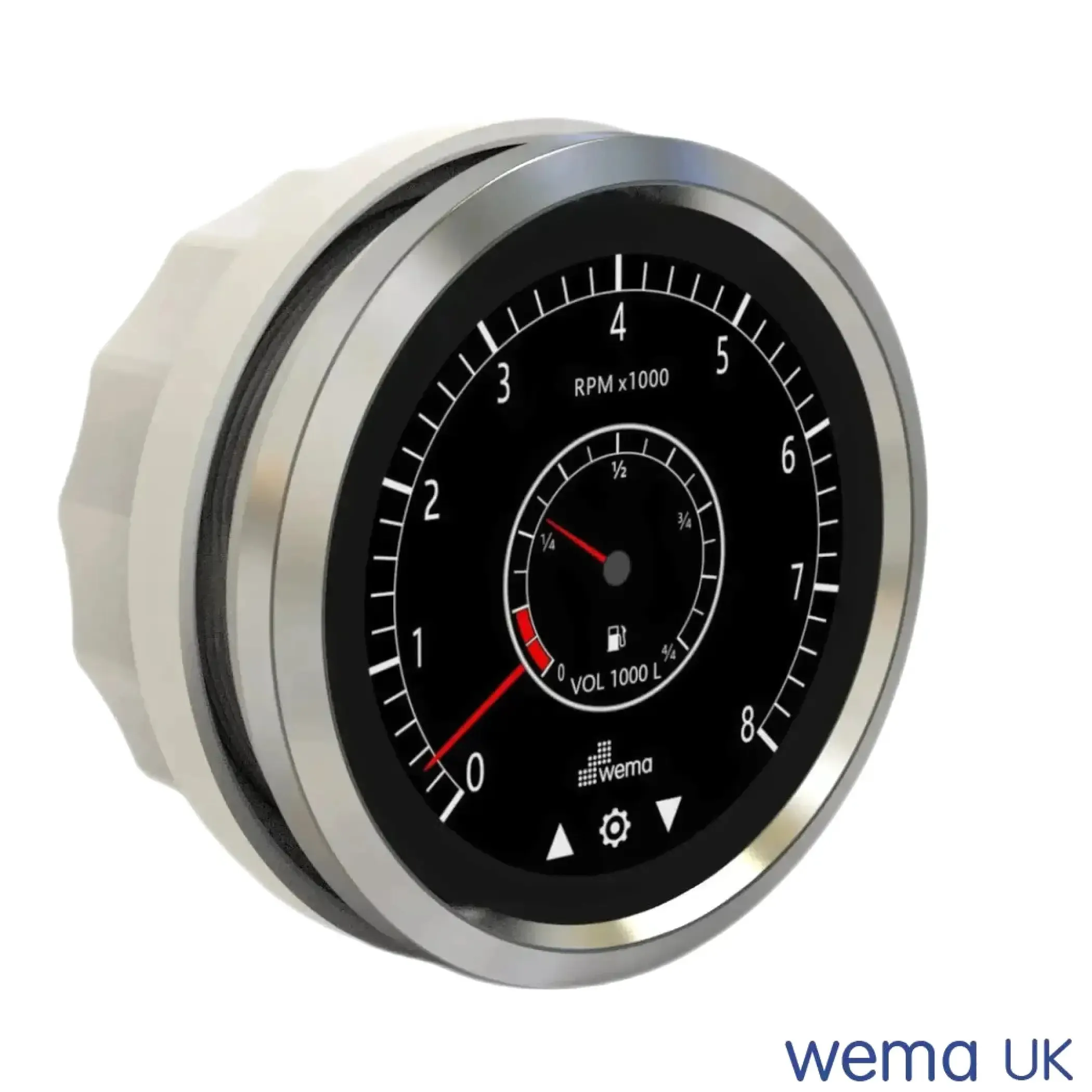

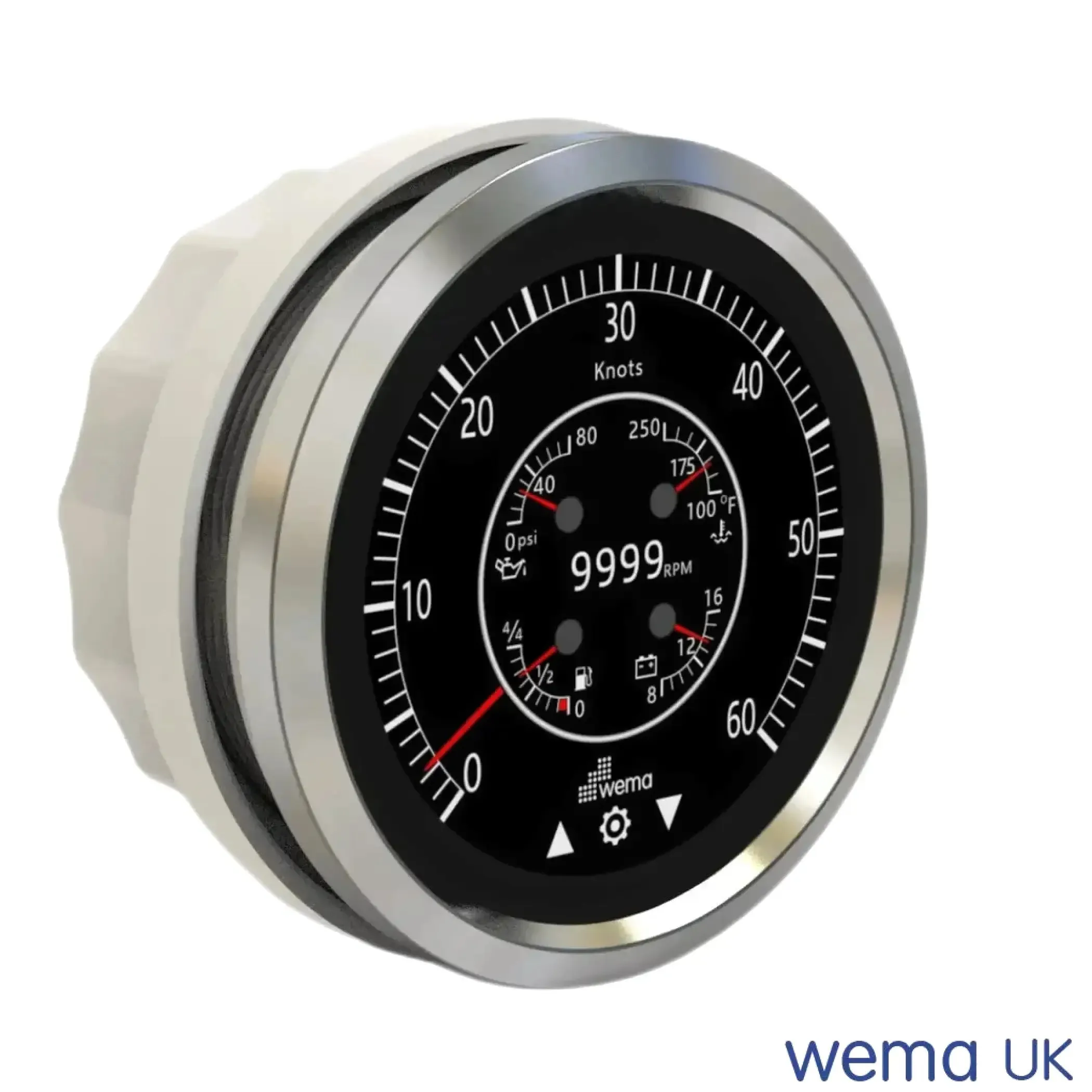

The innovative Wema multi-function touchscreen gauge features a high-definition 4.2" display, offering crystal-clear visibility for marine applications. This cutting-edge device combines advanced technology with rugged durability, making it an ideal choice for boating enthusiasts and professional mariners alike.

Engineered to withstand the harshest marine environments, this gauge boasts a robust construction and impressive IP67 waterproof rating. This level of protection ensures reliable performance even in challenging conditions, from saltwater spray to heavy rain.

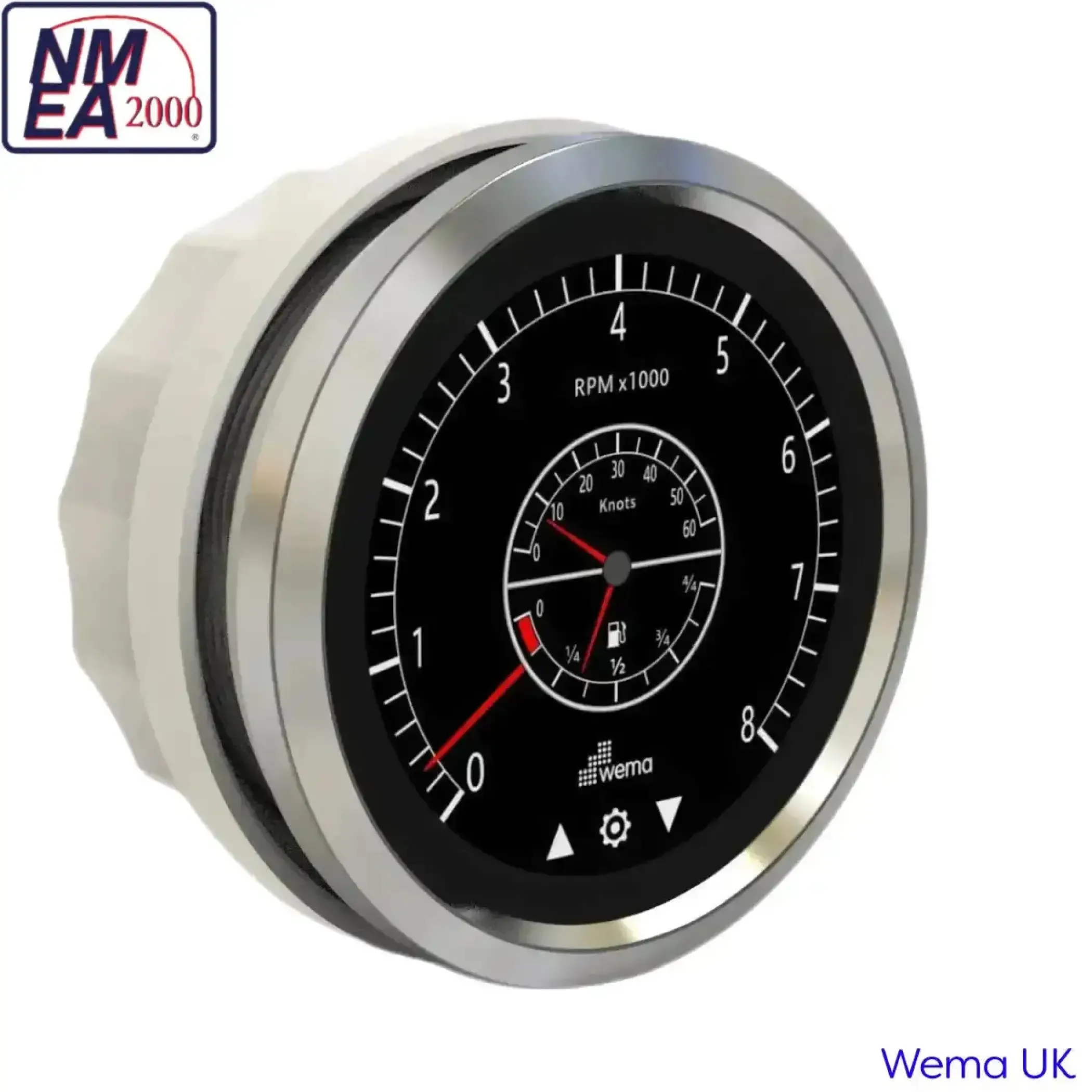

Versatility is a key feature of this multi-function touchscreen gauge, as it seamlessly integrates with both analogue resistance sensors and digital networks. Compatible with NMEA2000 and J1939 protocols, it offers flexibility in installation and connectivity options to suit various marine setups.

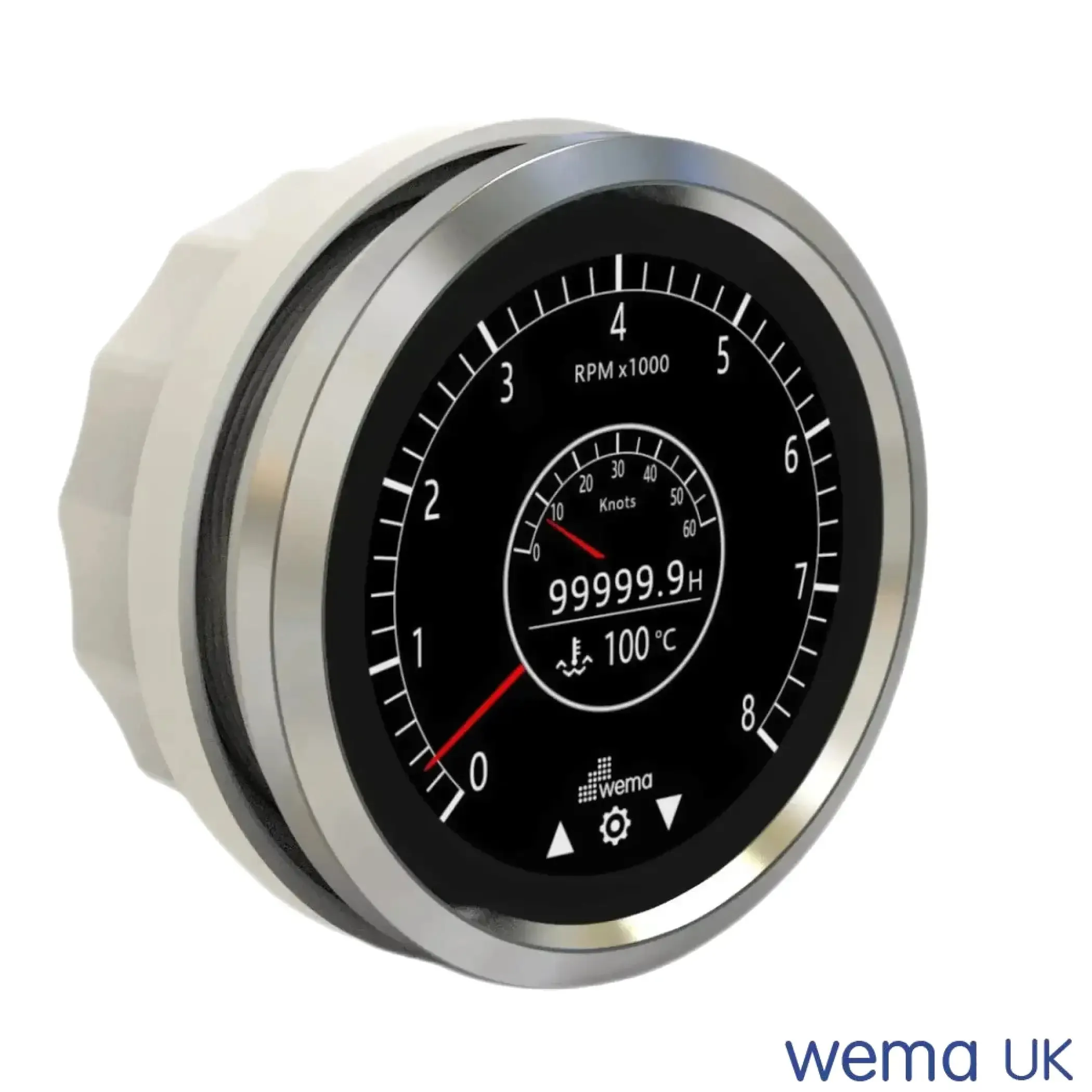

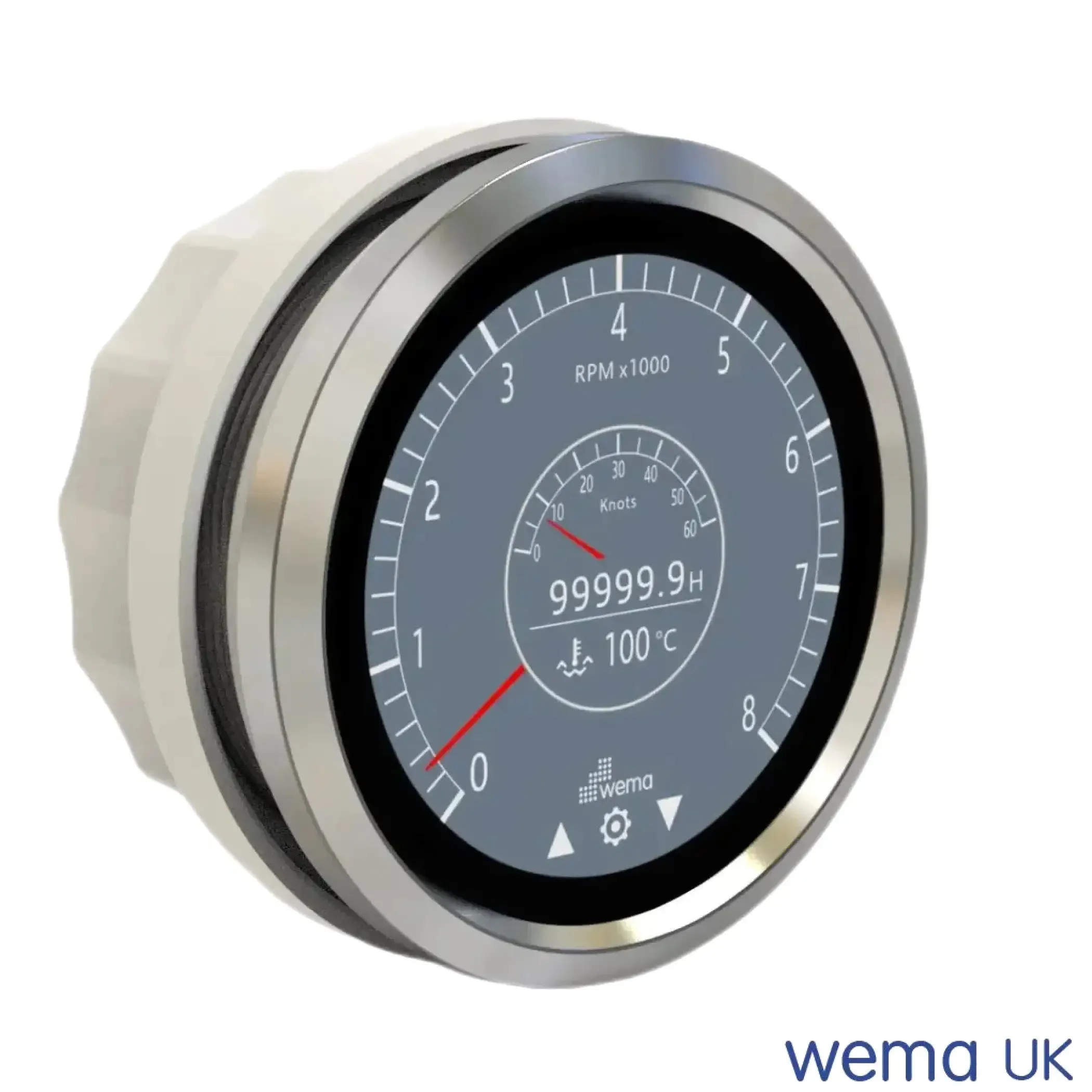

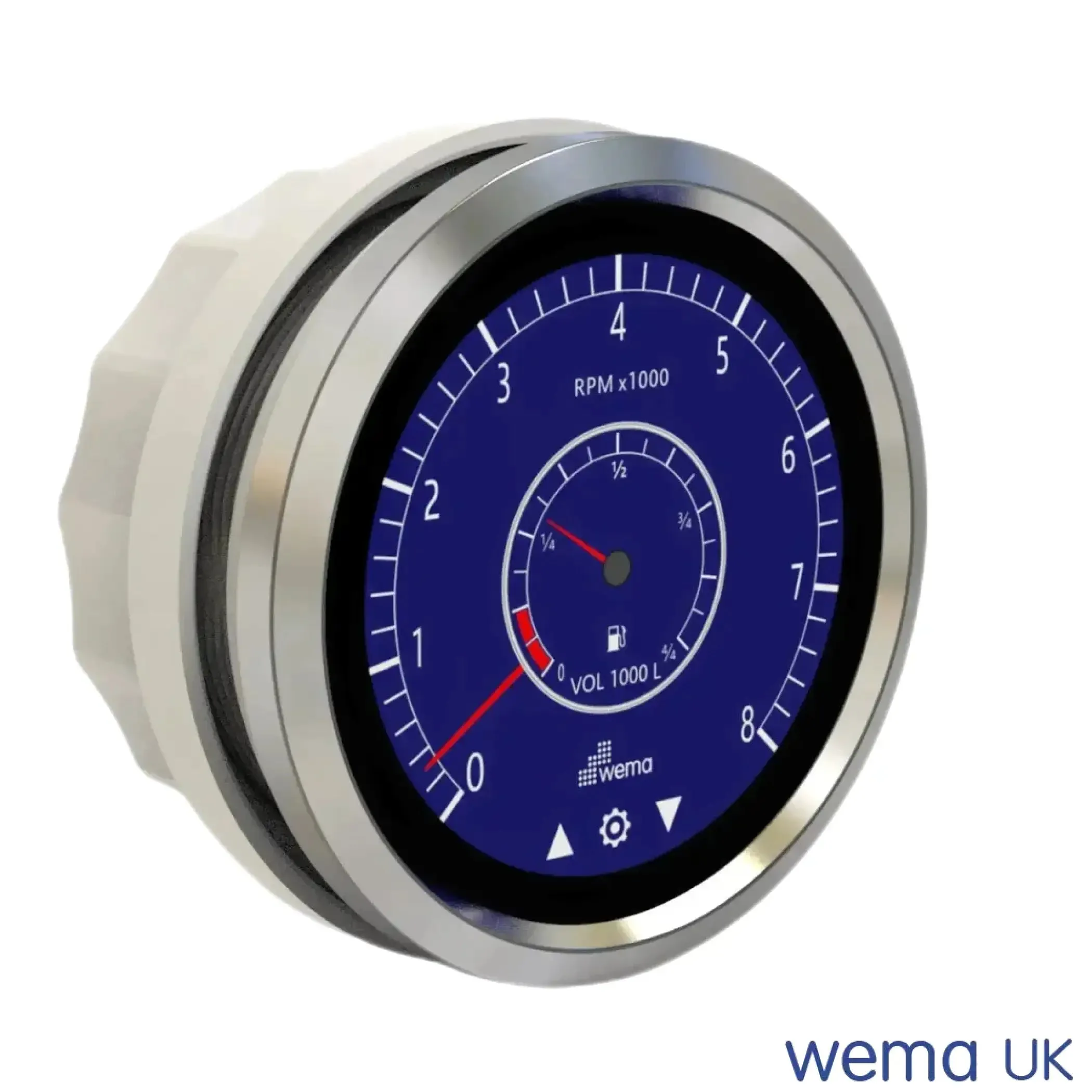

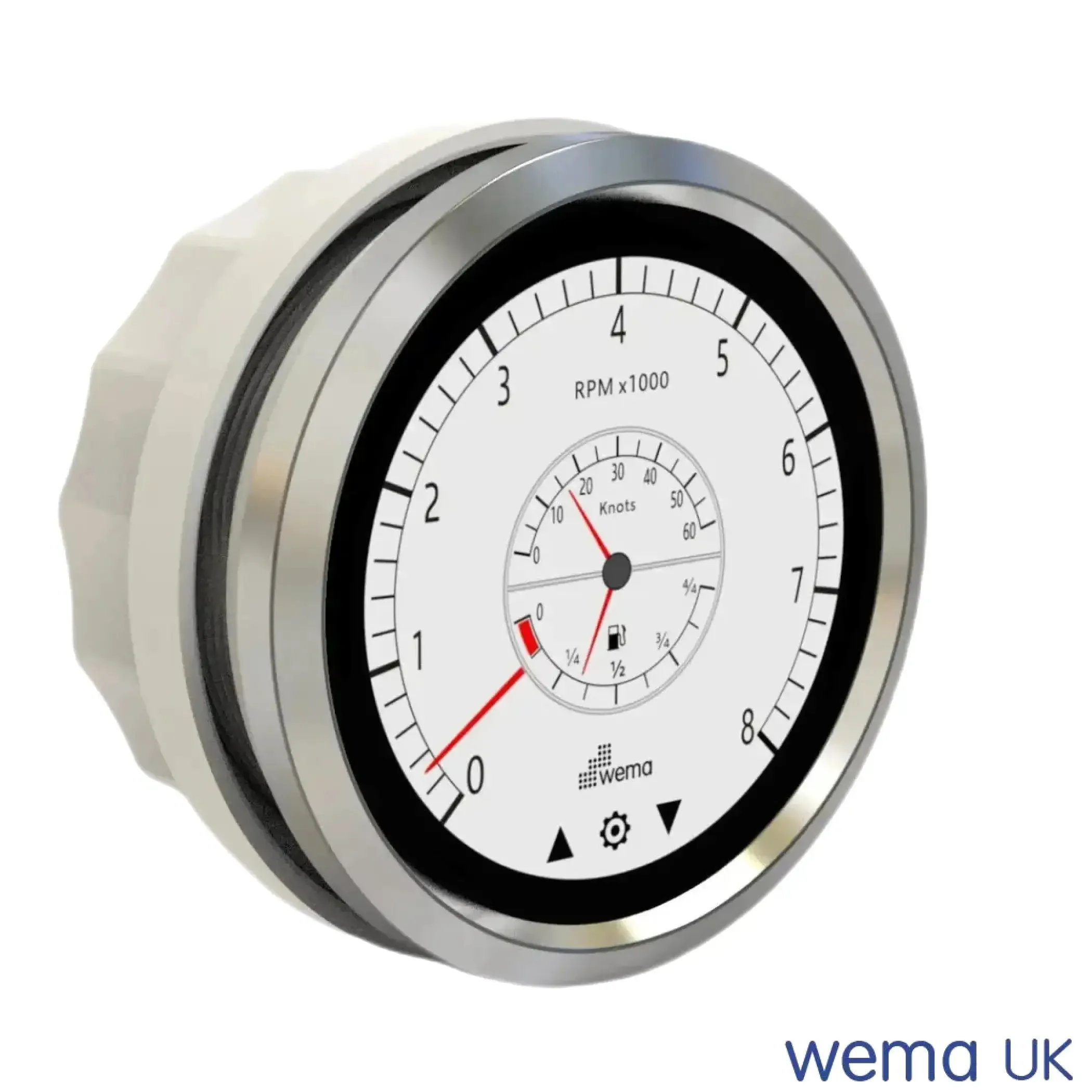

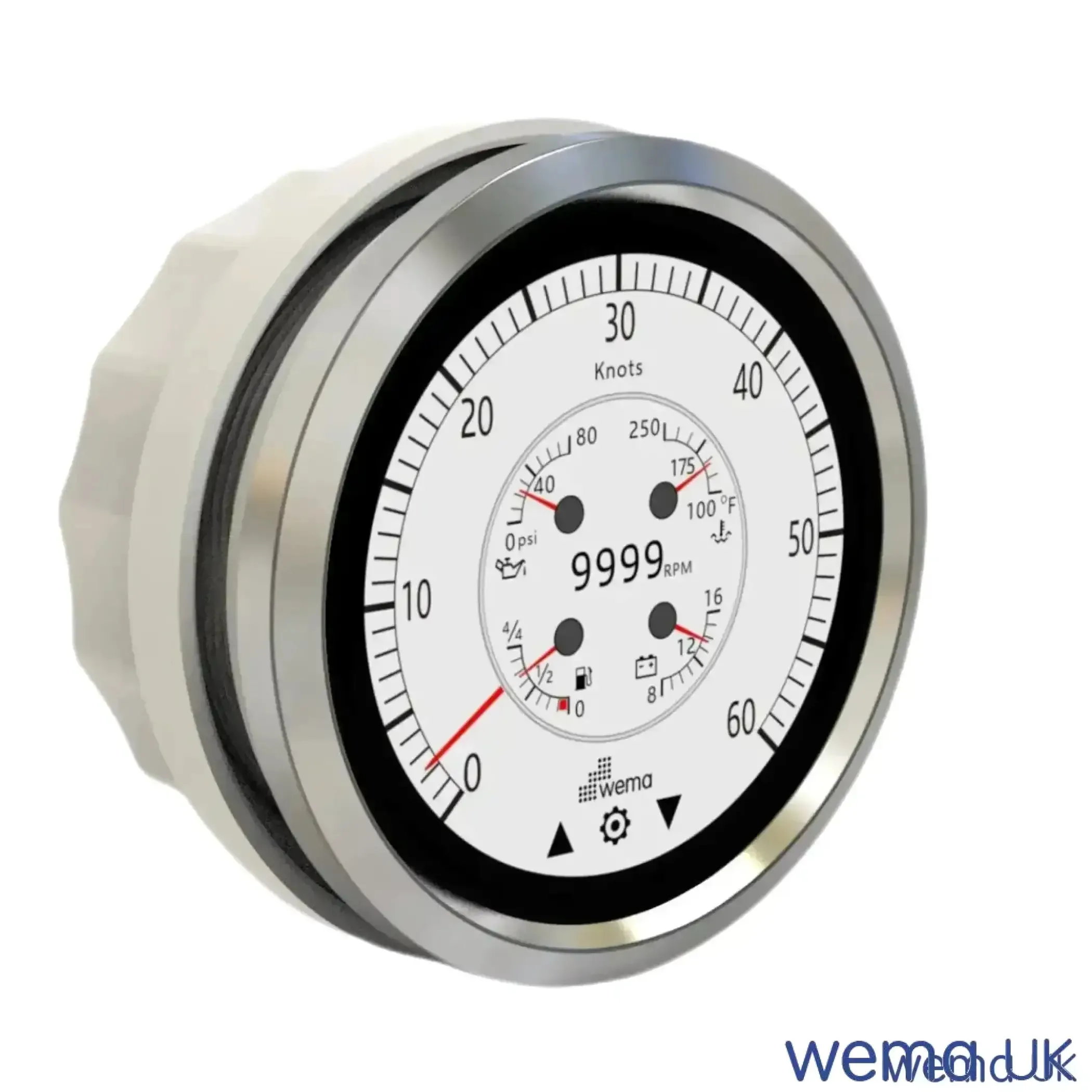

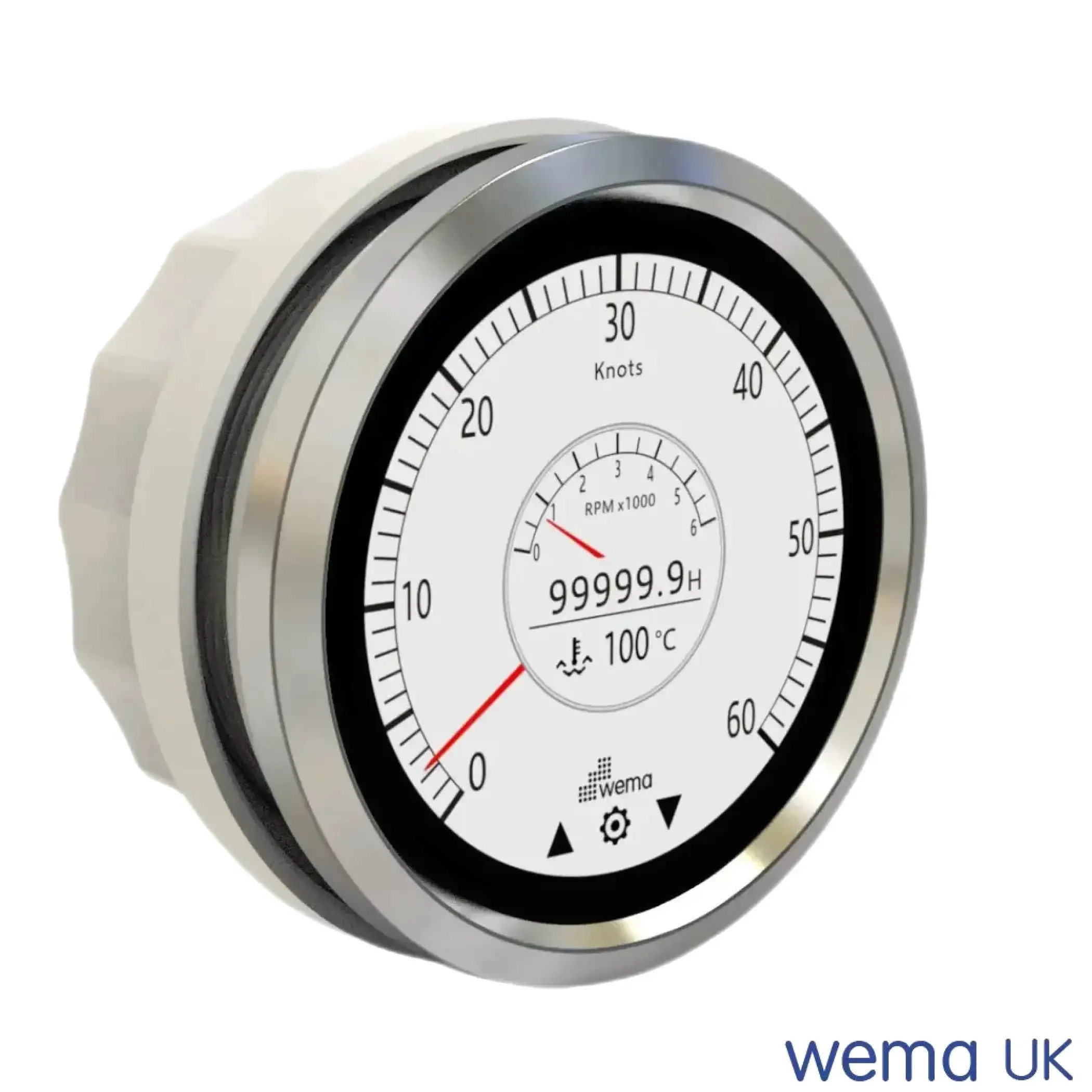

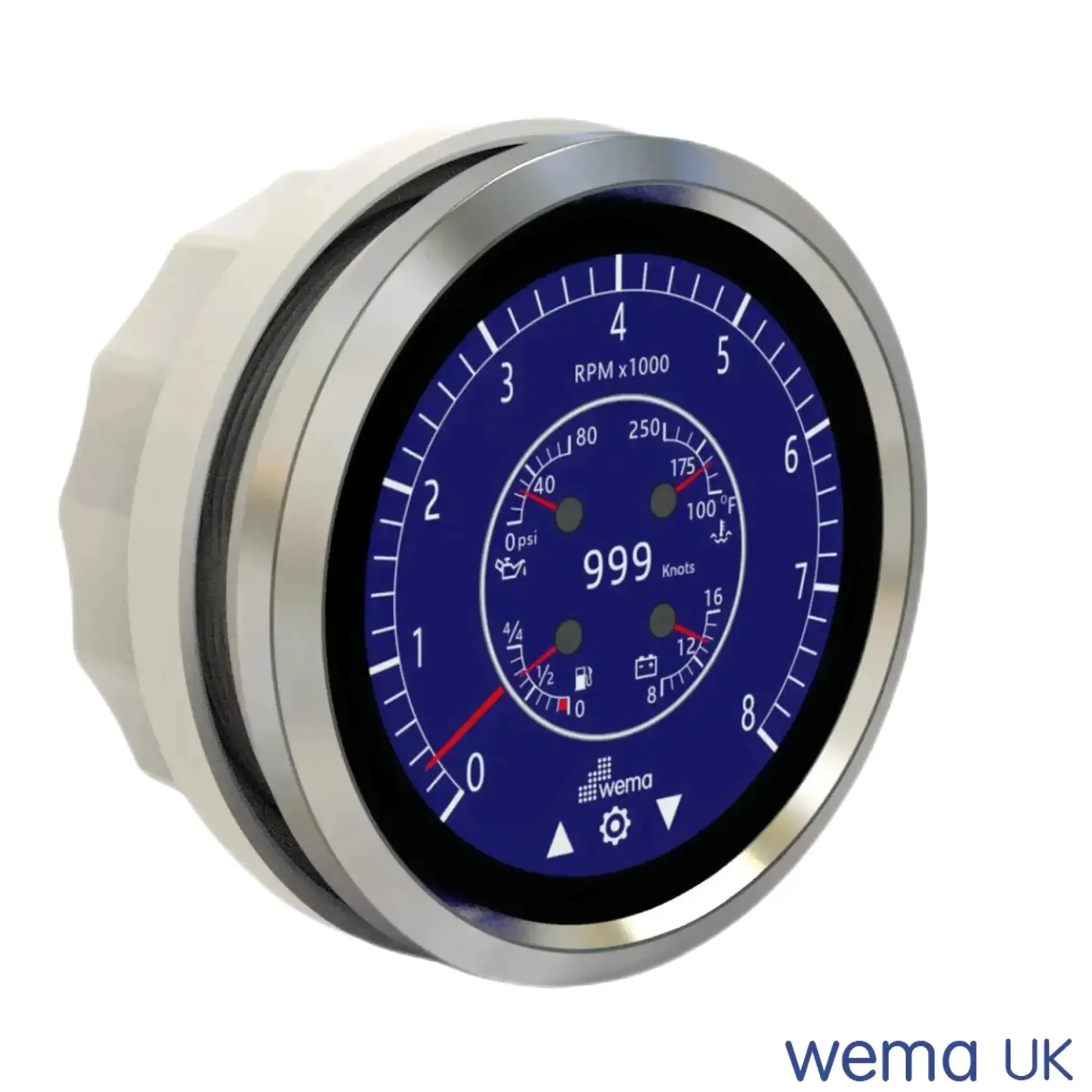

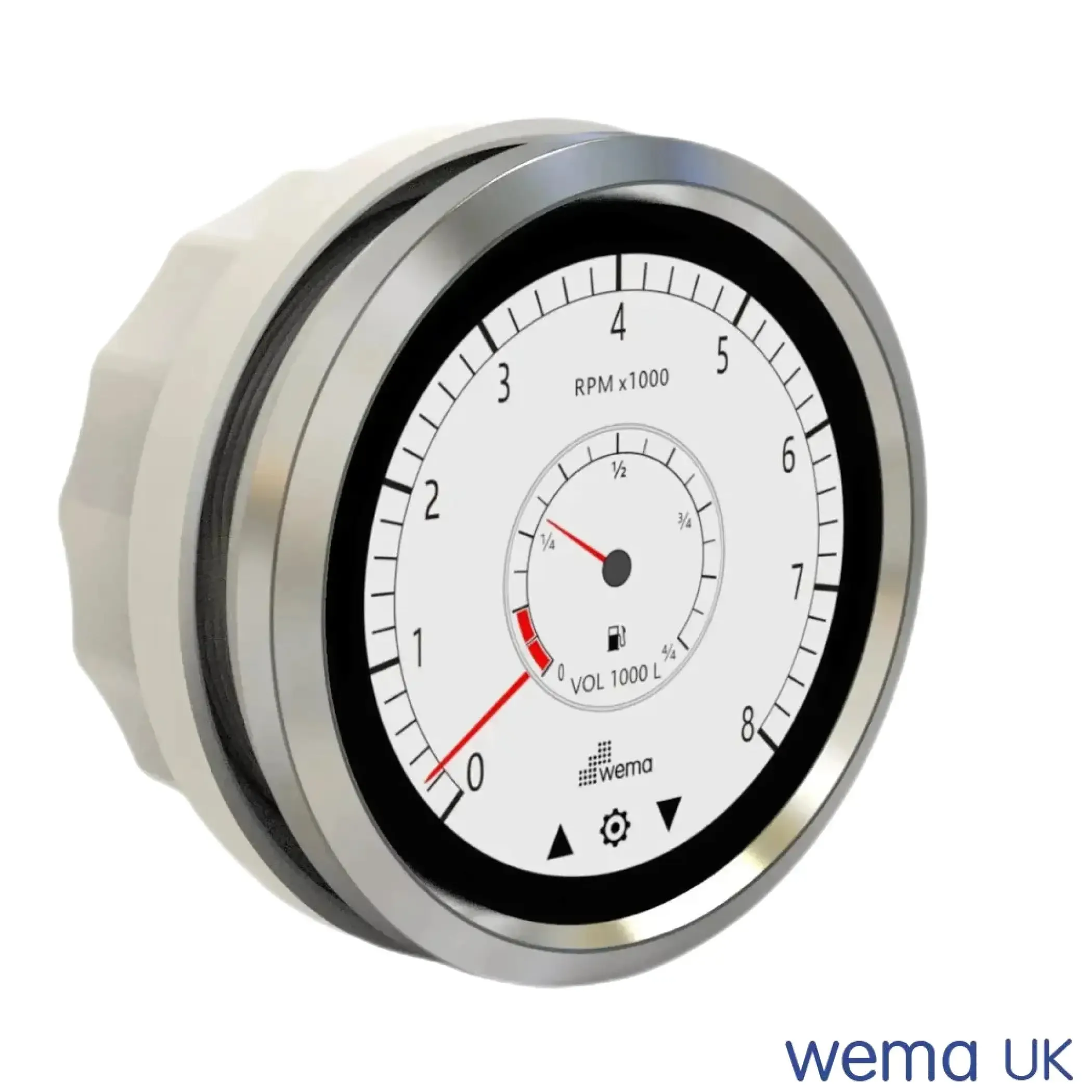

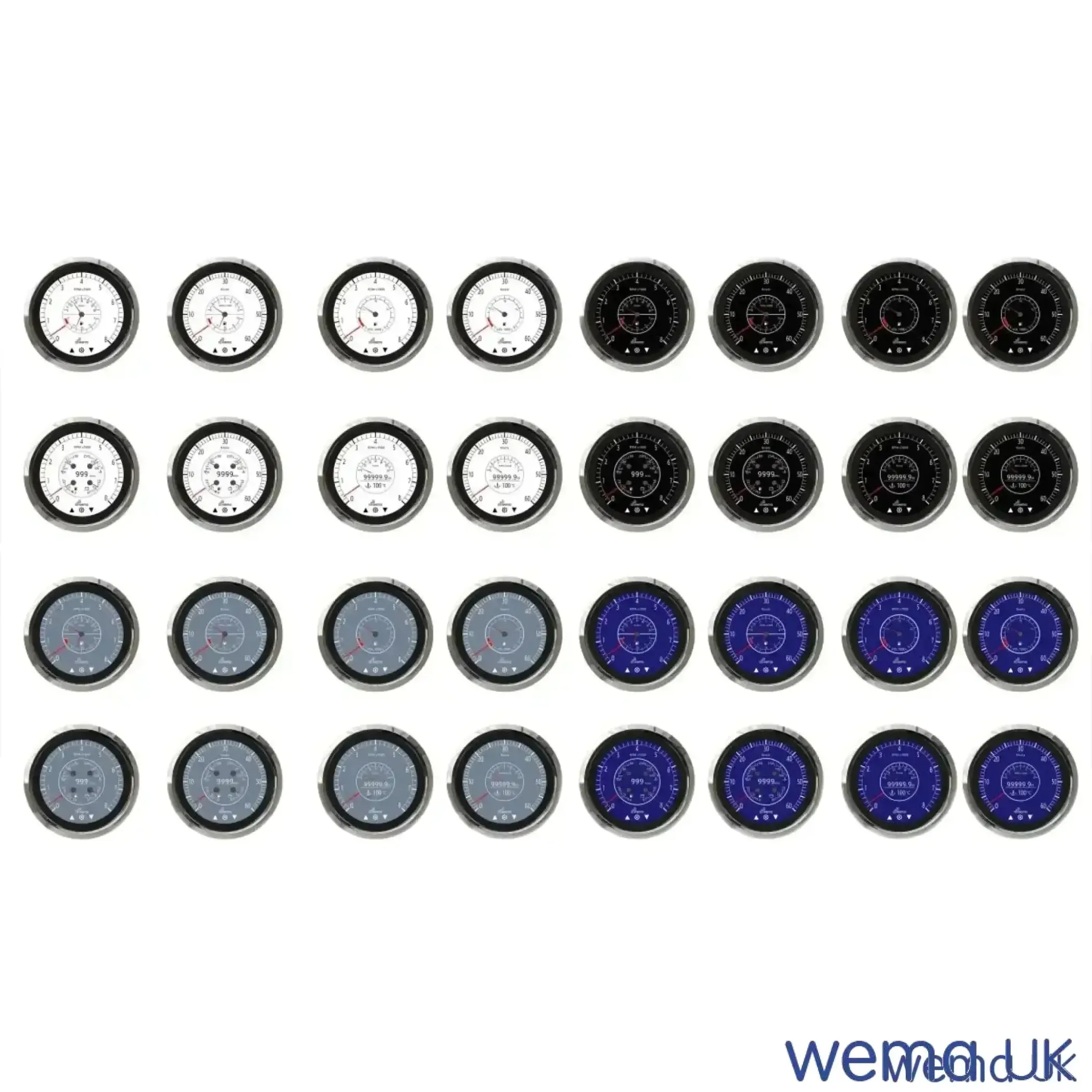

Customization is at your fingertips with four distinct face colors and eight different styles to choose from, allowing you to tailor the gauge's appearance to your vessel's aesthetic. This level of personalization ensures that the gauge not only performs exceptionally but also complements your boat's interior design.

The package includes a 1m NMEA2000 drop cable with both female and male connectors, facilitating easy integration into existing NMEA2000 networks. Additionally, an analogue connection cable is provided for traditional sensor setups, offering a versatile solution for various marine electronic configurations.

Multi-function gauge options

• Speed (15/30/60 knots, km/h or mph selectable)


• RPM (4000, 6000 and 8000 rpm selectable)


• Engine hours


• Oil pressure


• Water temperature


• Voltage


• Fuel level


• Warning lights

Compatible Sensors

• External High Speed GPS Antenna

• NMEA2000 Analogue to Digital Signal Converter - Used to connect analogue sensors to the NMEA2000 network:

• Oil Pressure Sensor

• Water Temperature Sensor

• Fuel Senders - N3 Sensor (screw fit) or N5 Sensor (bolt down)

• NMEA2000 Starter Kit - Everything needed to create a small NMEA2000 network

Gauge Display Settings

• Style settings: Eight distinct styles available, easily changeable using the up and down arrows on the gauge page.

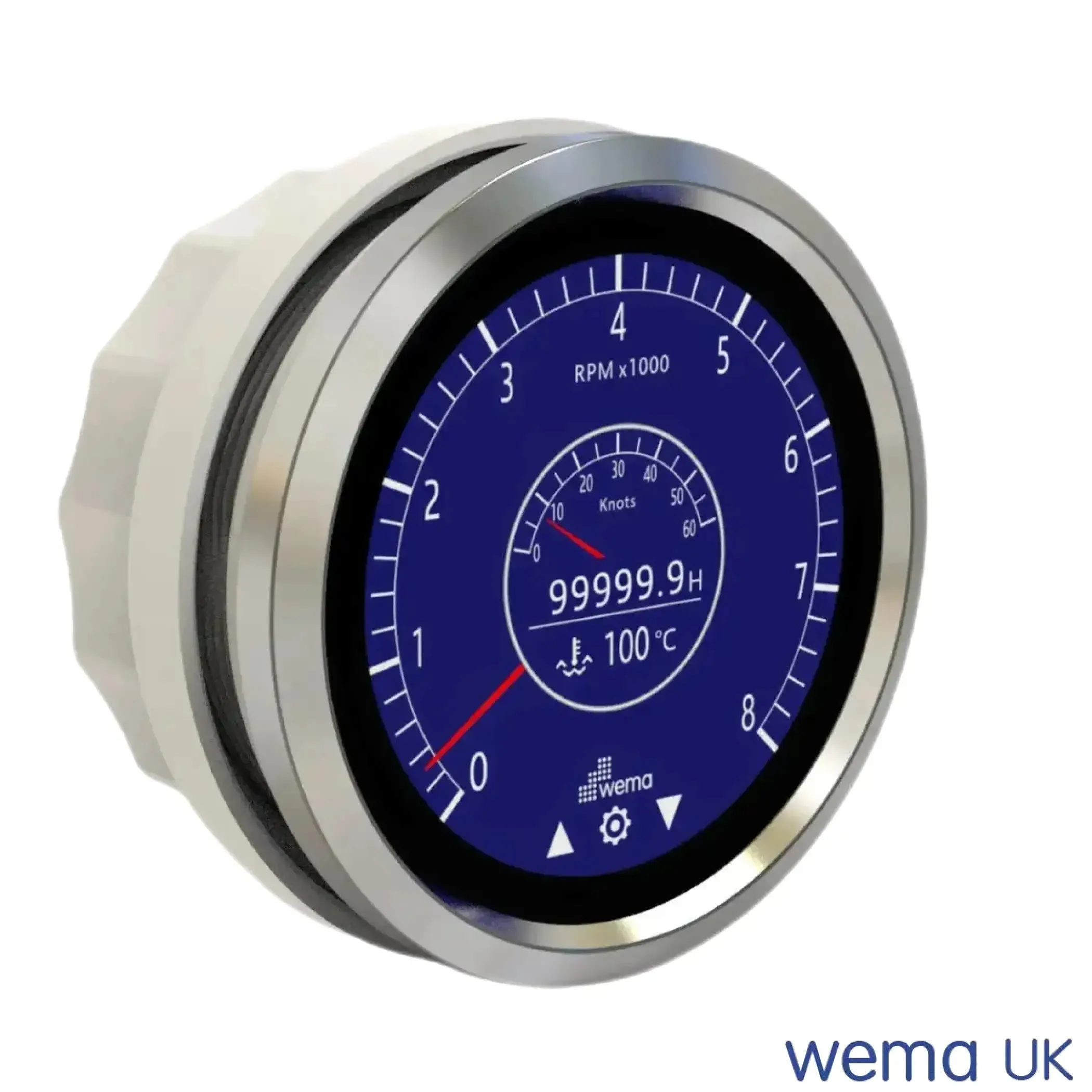

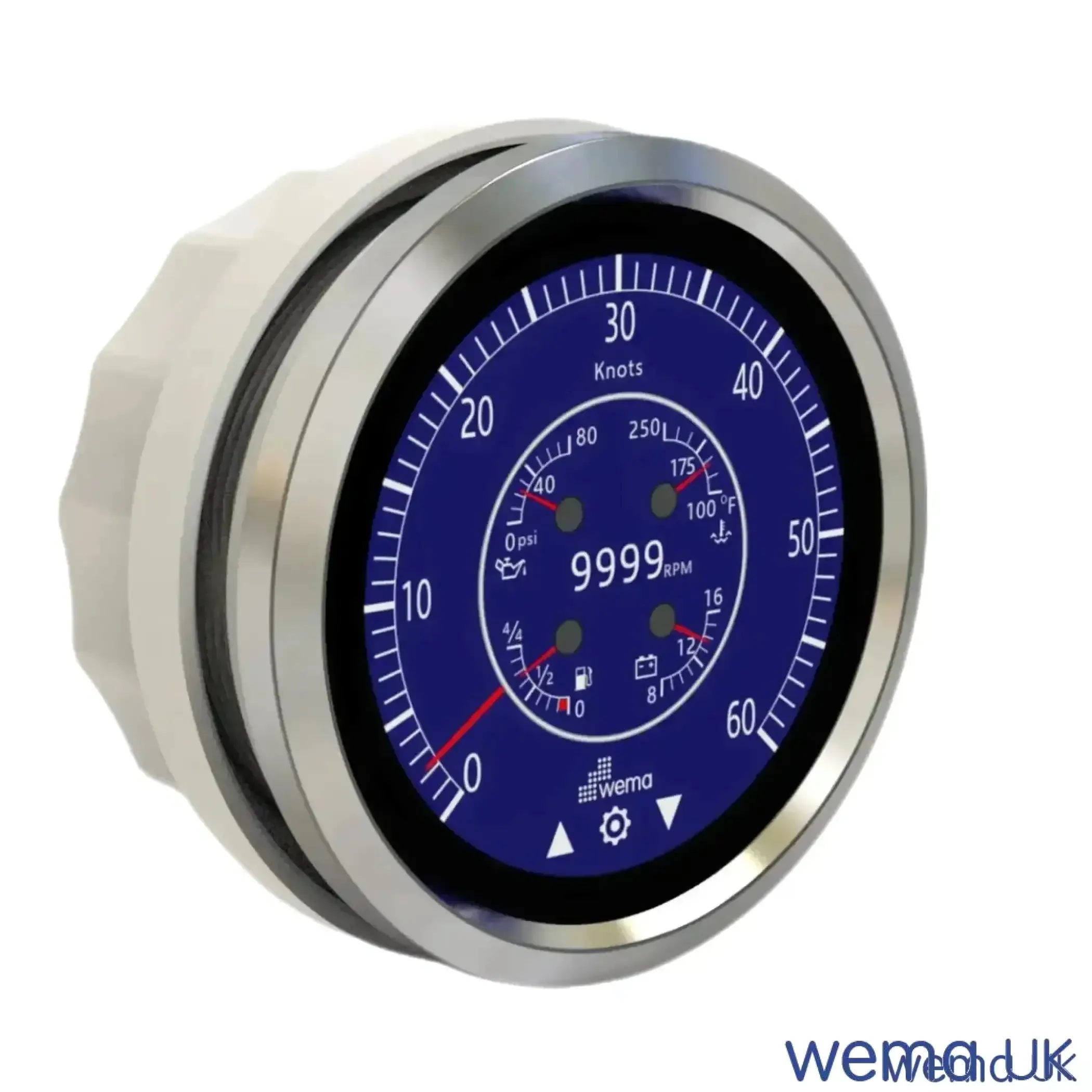

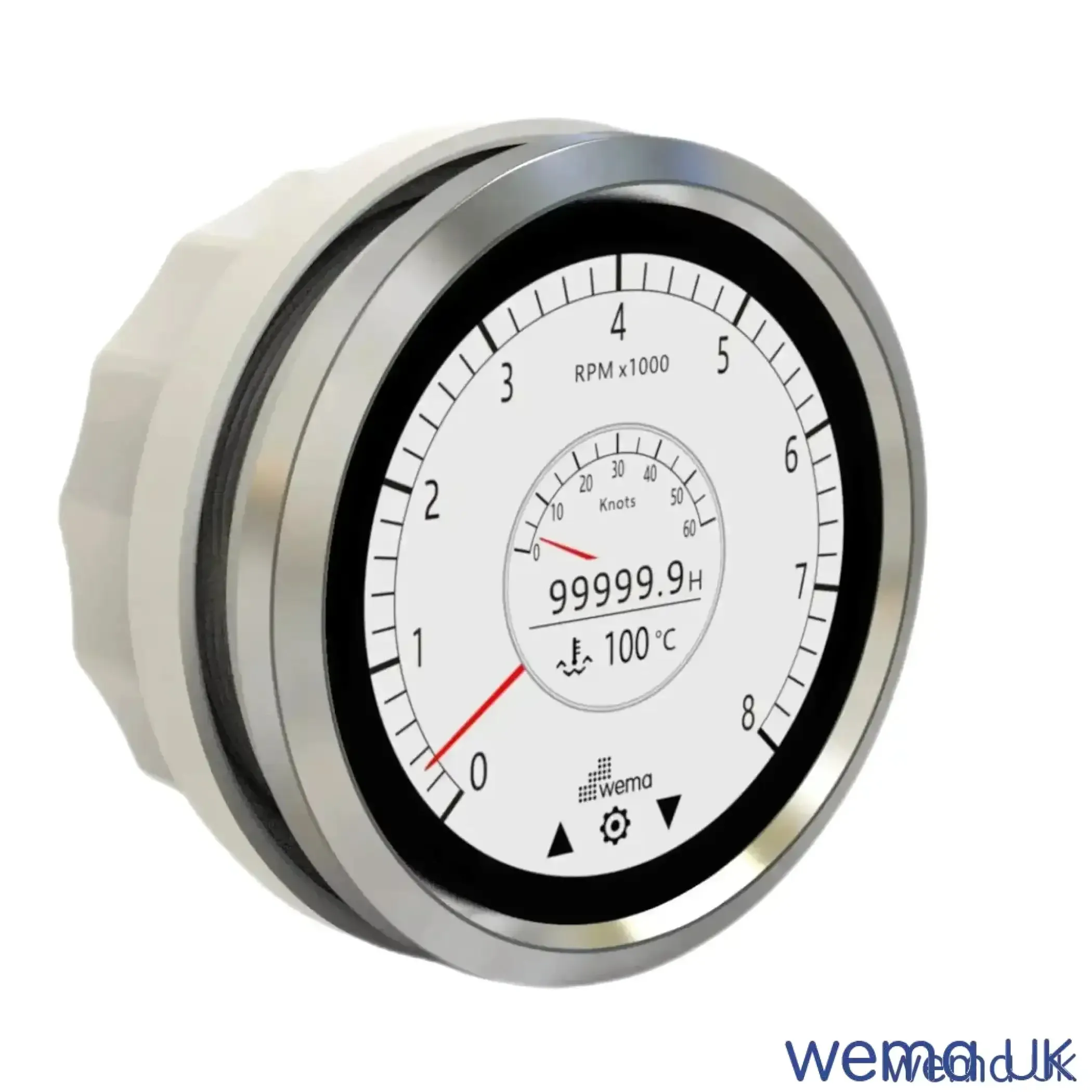

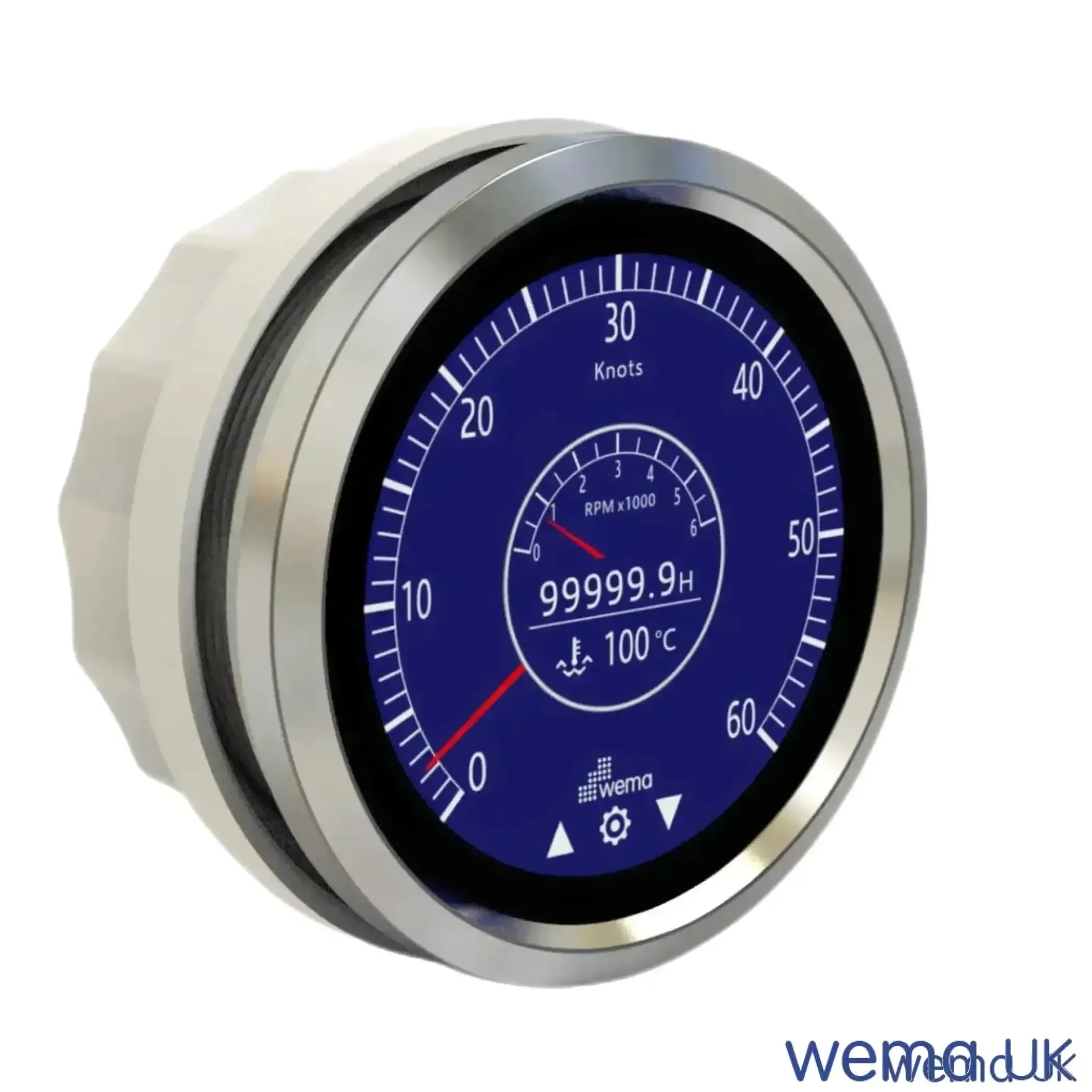

• Colour settings: Choose from four background colours - White, Black, Grey, or Blue - to match your preferences and enhance visibility in various lighting conditions.

• RPM/Speed range: Customize the RPM range (4000, 6000, or 8000 RPM) and speed range (15, 30, or 60) to suit your vessel's specifications.

Multi-function settings

• Speed unit: Select between Knots, Km/h, or MPH for accurate speed readings.

• Temperature unit: Choose Celsius or Fahrenheit for precise temperature monitoring.

• Pressure unit: Set to either Bar or PSI for optimal pressure readings.

• Brightness: Fine-tune visibility with ten adjustable brightness levels.

Multi-function Gauge Alarm Settings

• Fuel level: Set a custom threshold for low fuel warnings.

• Water temp.: Configure coolant water temperature alarms, with a recommended setting of 95°C.

• Oil pressure: Customize oil pressure alarm levels for enhanced engine protection.

• Volt meter: Set voltage alarm thresholds, with a standard setting of 10.5 volts.

GPS Settings

• GPS antenna: Select this option when connecting to analogue signals.

• NMEA2K network: Choose this setting when integrating with a NMEA2000 network for comprehensive data sharing.

IN THE BOX

• Wema 4.2" Multi-function Touchscreen Gauge

• NMEA2000 cable

• Analogue signal cable combined with 12/24 volt power cable

• Analogue GPS antenna

• User's manual

Multi-function touchscreen gauge specifications

• Dimension: 4.2" LCD sunlight viewable touch screen

• Screen resolution: 720x720 px

• Drill hole: 134 mm

• Outer diameter: 140 mm

• Depth: 85 mm (incl. cable and connector)

• Operating temperature: -30 to 85°C

• IP rating: IP67

• Power supply: 12 V (via the NMEA2000 network) or 9-32V with analogue connection

• LEN=4

This state-of-the-art Wema NMEA2000 compatible multi-function touchscreen gauge revolutionizes marine instrumentation by combining multiple critical readings into a single, user-friendly display. From monitoring engine RPM and oil pressure to tracking fuel levels and GPS data, this versatile device provides comprehensive vessel information at your fingertips. Its compatibility with both analogue sensors and digital networks ensures seamless integration with various marine systems, making it an indispensable tool for both recreational boaters and professional mariners seeking reliable, accurate, and easily accessible data on the water.
