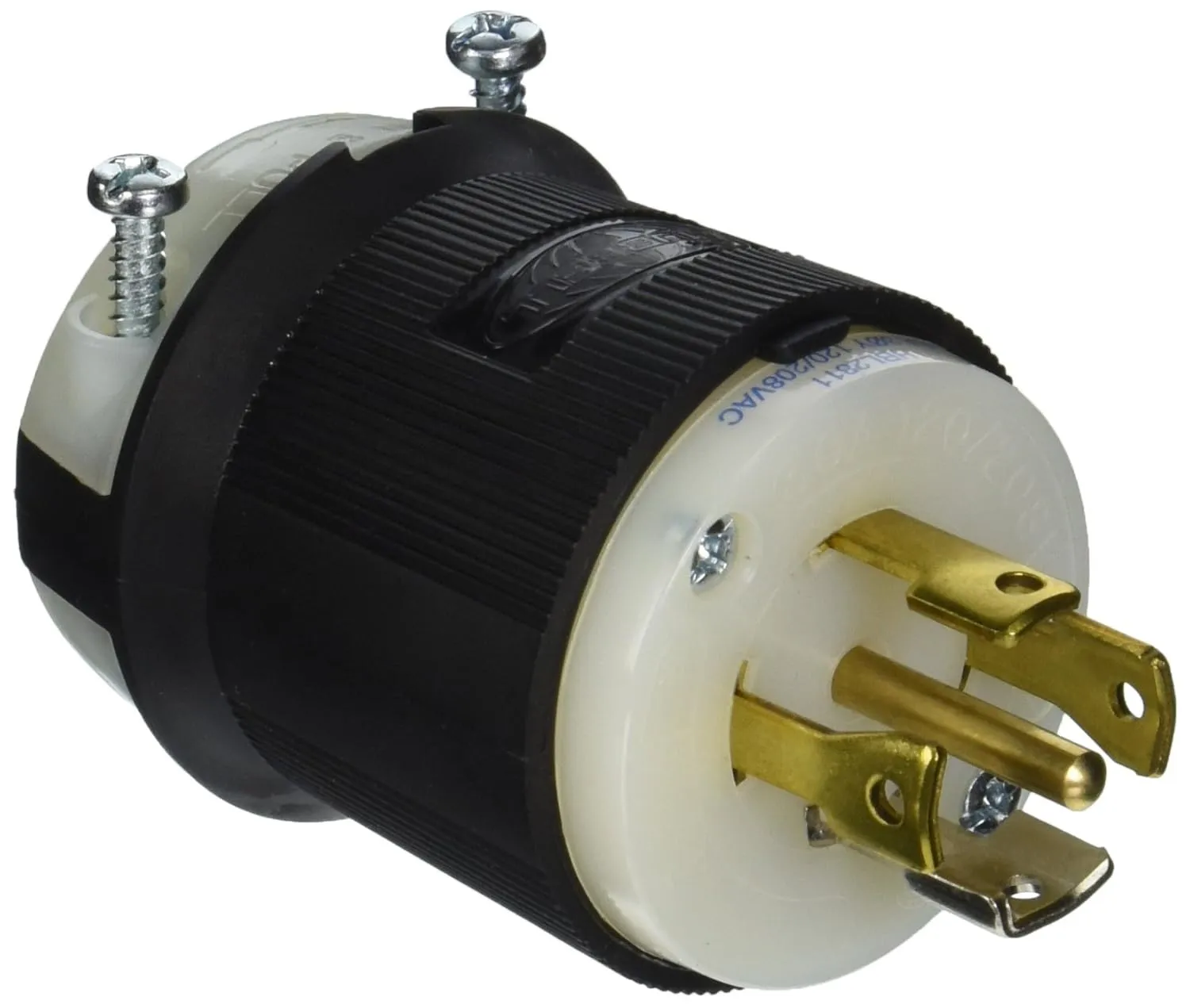

Hubbell HBL2811 Twist-Lock Plug Hubbell's Wiring Devices division offers a wide array of electrical and electronic wiring devices, wire management systems, occupancy sensors, lighting controls and specialized wiring products for the marine and healthcare markets. 4P5W, 30A 3PH 120/208V AC, L21-30P, Black & White Nylon. Hubbell HBL2811 Twist-Lock Plug Features: Product Type: Twist-Lock Devices Product Item: Plug Wiring Scheme: 4 Pole, 5 Wire Grounding Amperage: 30A Voltage: 3 Phase Y 120/208V AC NEMA Configuration: L21-30R Item Style: Insulgrip Device Color: Black/White Horsepower: 3 Cord Dia.: .35"-1.15" (9-29) Blade Holder Material: Natural White Nylon Terminal Retainer Material: Clear polycarbonate Housing Material: Black nylon Cord Clamp Material: Natural (white) nylon Blade Material: Brass Terminal Clamp Material: .08" (2) steel-nickel plated Terminal Screw Material: #10-32 Brass (white finish on neutral screw when used) Multi-drive Ground Screw Material: #10-32 Brass (green finish) Multi-drive Cord Clamp Screw Material: Steel, zinc plated Multi-drive Body Holding Screw Material: Steel, zinc plated Multi-drive Ratings: Molded into face. Catalog No.: Permanently ink marked on body. Dielectric Voltage Withstand: 2,000V minimum Current Interrupting: Certified for current interrupting at full rated current. Temperature Rise: Max 30 C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. Cord Accommodation: Round portable service cords of diameters commensurate with the device rating as defined in UL Standard 62, CSA C22.2 No. 49. Terminal Accommodation: 30A #10 AWG Terminal Identification: Terminals identified in accordance with UL 498 (X, Y, Z, White, Green) Flammability: HB or better per UL 94 or CSA 22.2 No. 0.6 Operating Temperatures: Maximum Continuous 75 C Minimum -40 C (w/o impact)

• Is Discontinued By Manufacturer ‏ : ‎ No
• Product Dimensions ‏ : ‎ 2.5 x 4.5 x 2.5 inches; 0.01 ounces
• National Stock Number ‏ : ‎ 5935-99-000-0000
• Date First Available ‏ : ‎ September 25, 2006
• Manufacturer ‏ : ‎ Hubbell
