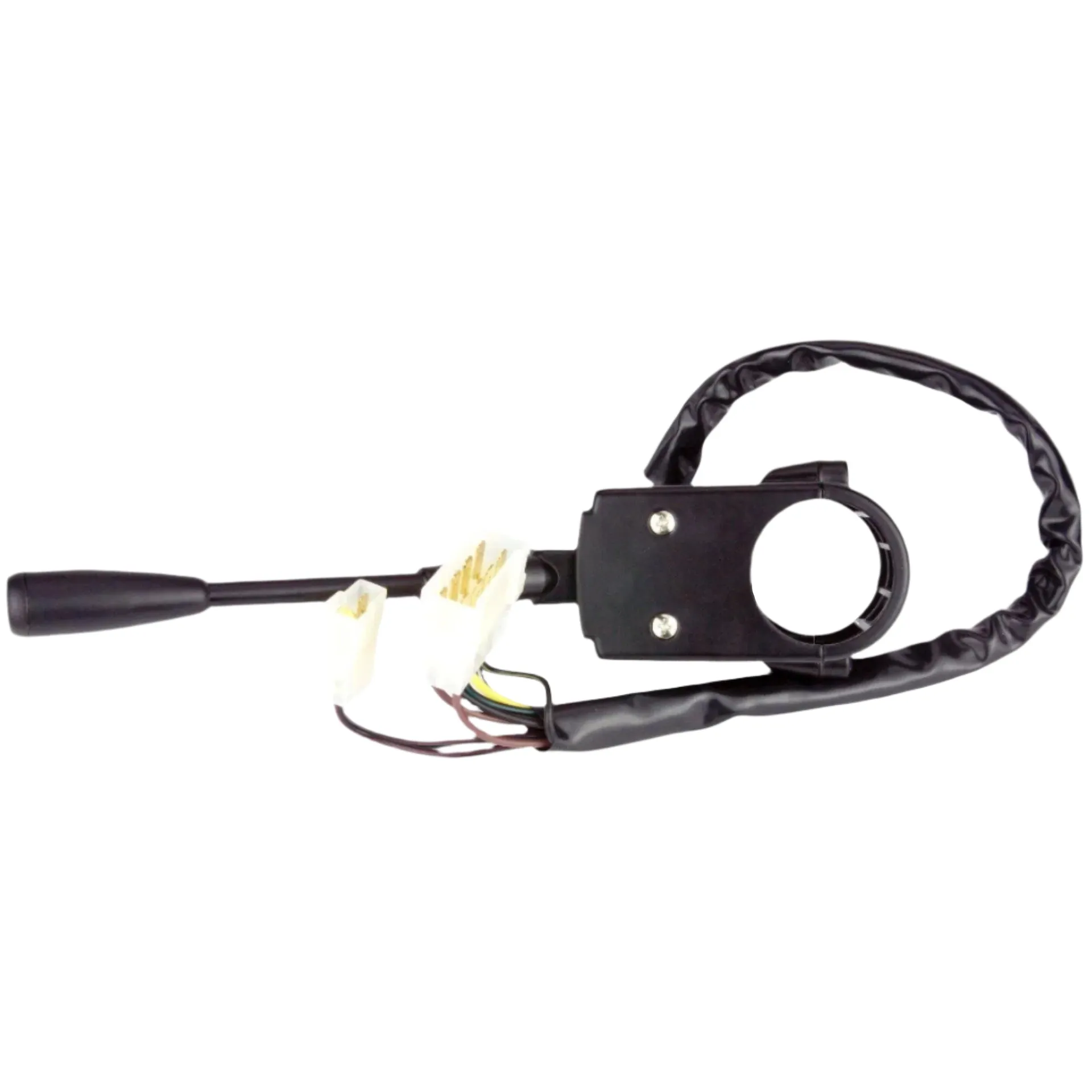

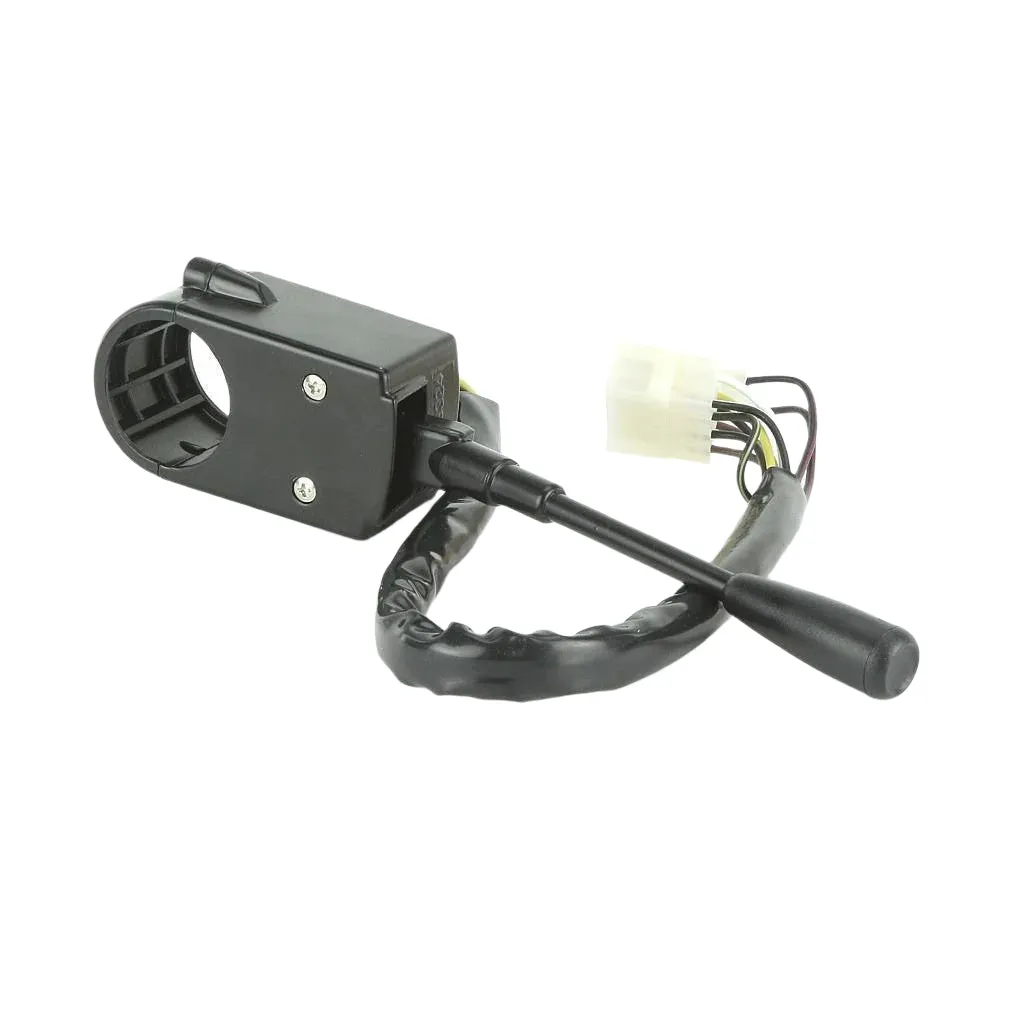

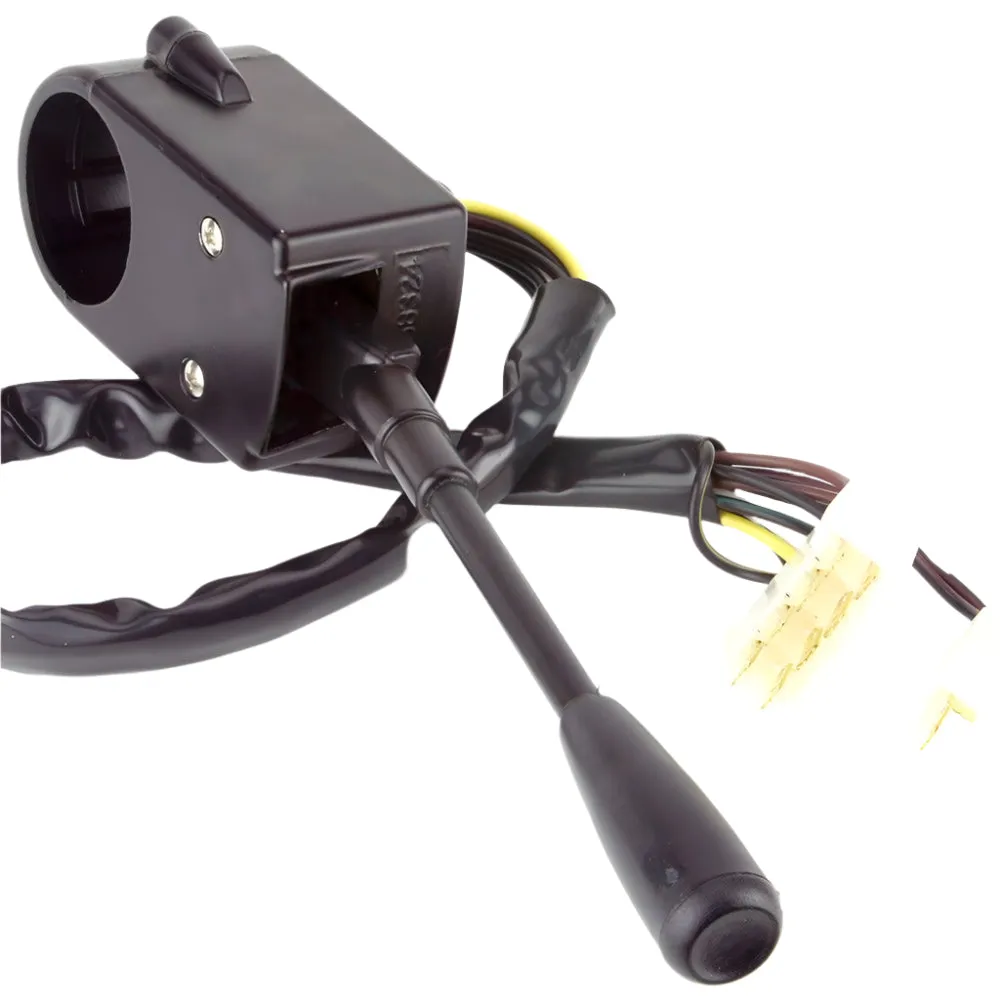

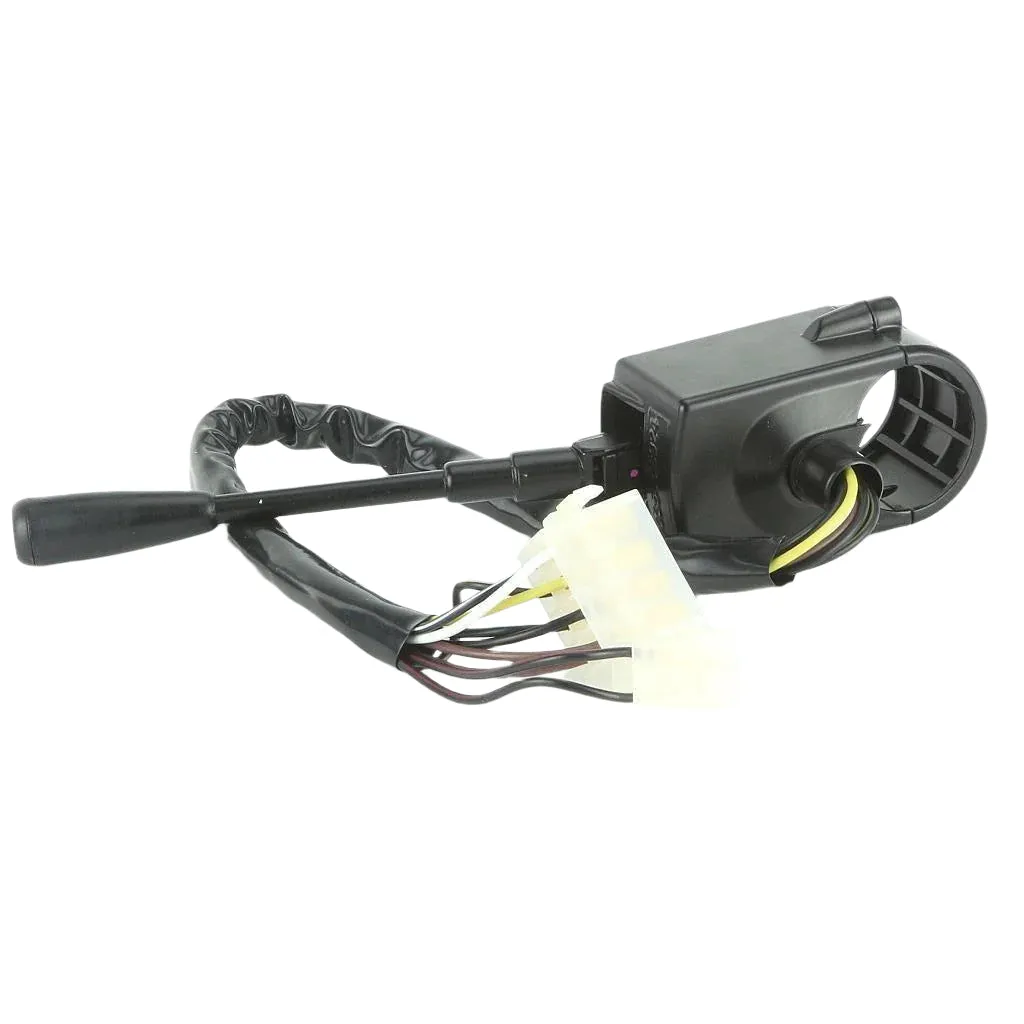

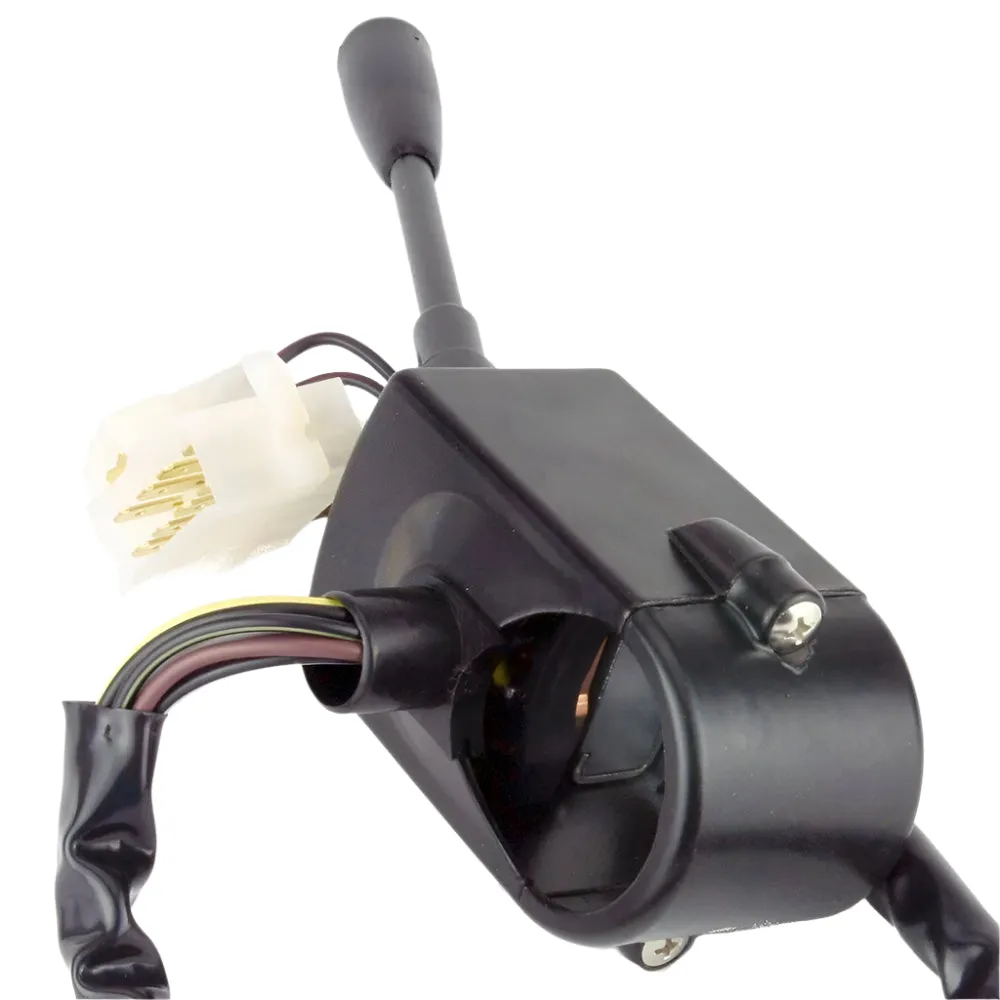

A heavy-duty indicator / dip switch with headlamp flash function and push button horn on the end.
It has a die-cast stalk and aluminium body that will clamp directly around a 45mm diameter column.
(NOTE: smaller diameter columns will require a reducer sleeve.)
500mm long, sleeved cables with one 8 way and one 2 way multi-pin plugs with 1/4" male spade connectors.
Body size 100 x 60 x 45mm.
Stalk length from centre of column 245mm.
Weight 575 gms.

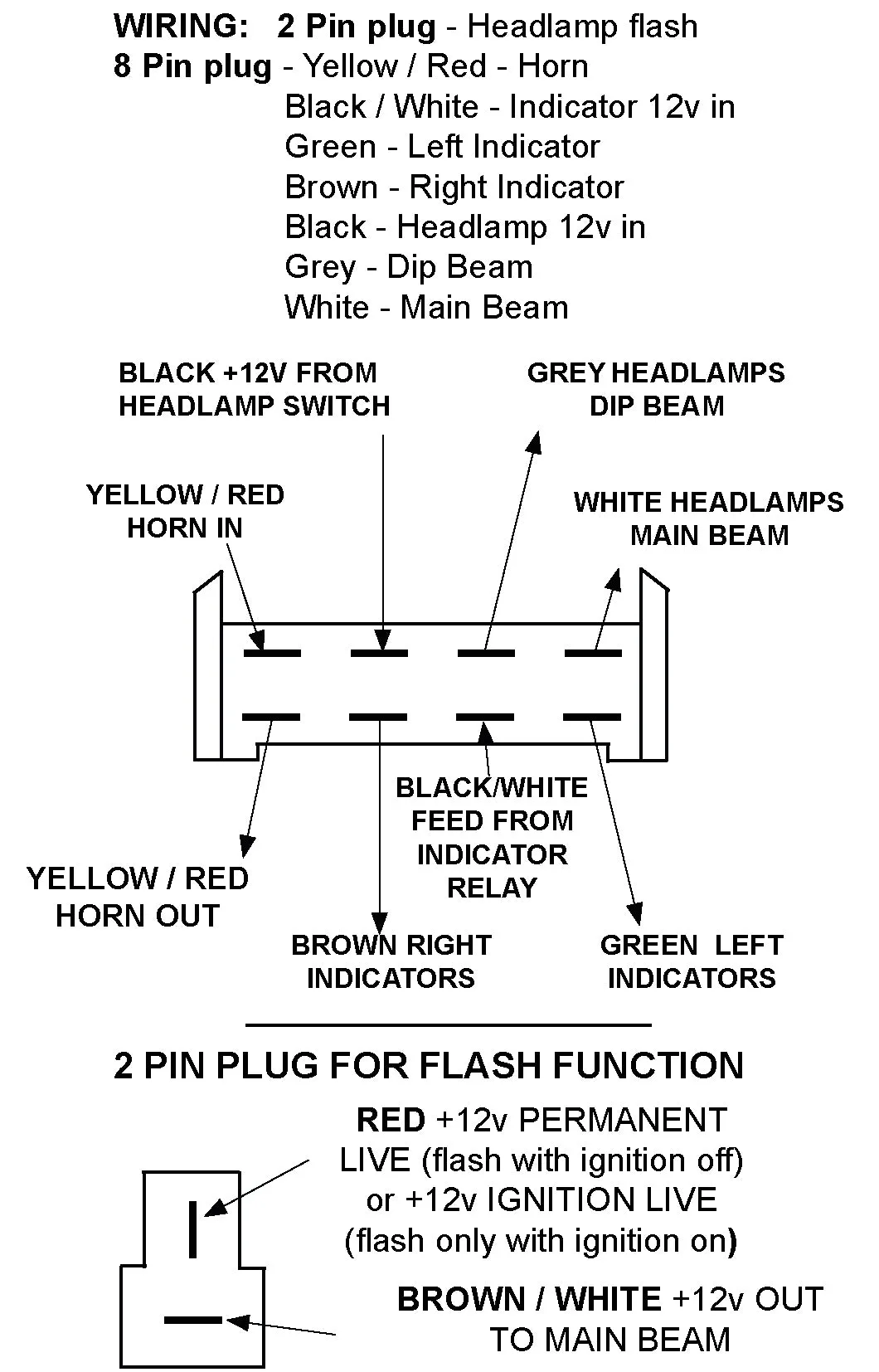

WIRING: 2 Pin plug - Headlamp flash
8 Pin plug - Yellow / Red - Horn
Black / White - Indicator 12v in
Green - Left Indicator
Brown - Right Indicator
Black - Headlamp 12v in
Grey - Dip Beam
White - Main Beam
HEAVY DUTY INDICATOR / DIP / HORN STALK ASSEMBLY #INDSW11
