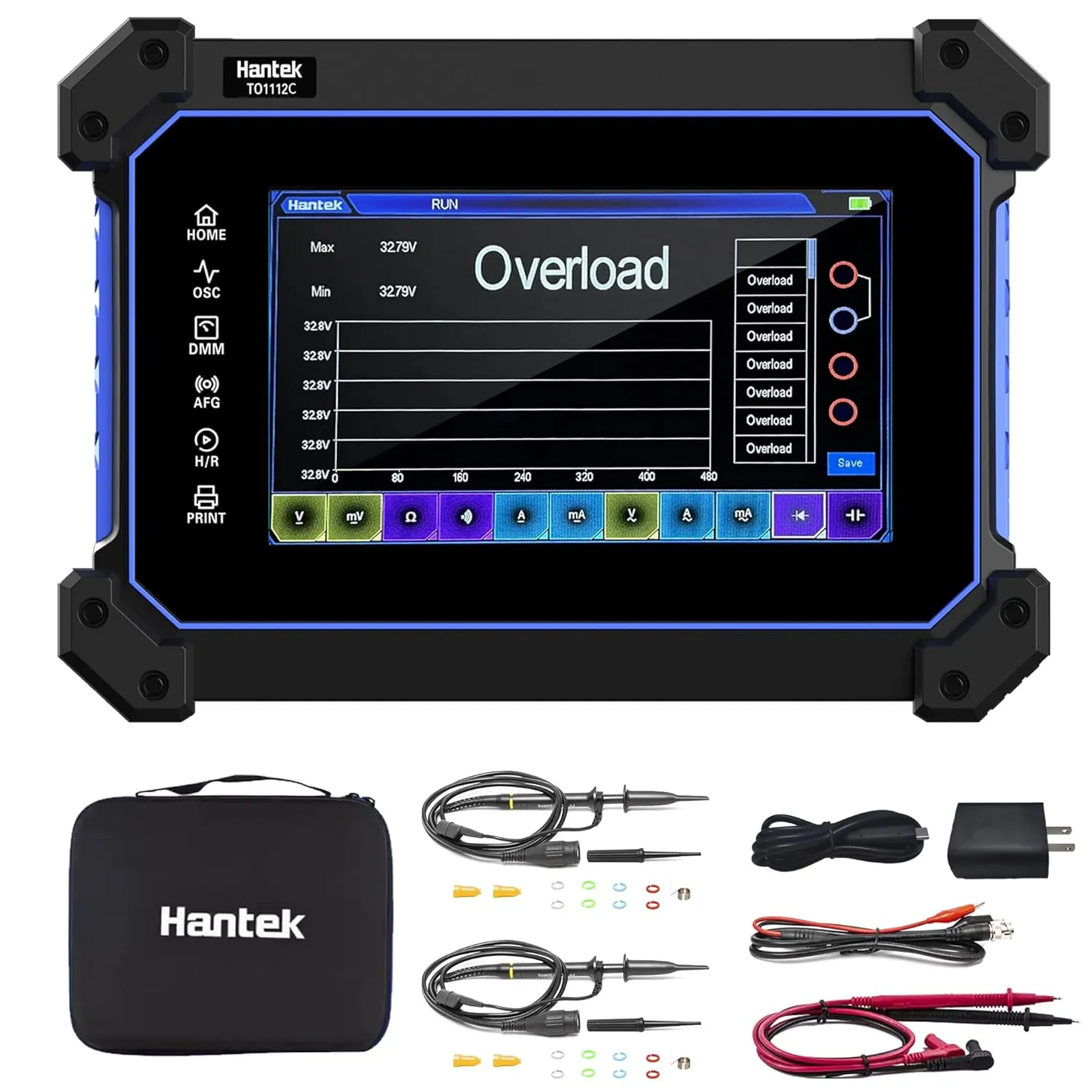

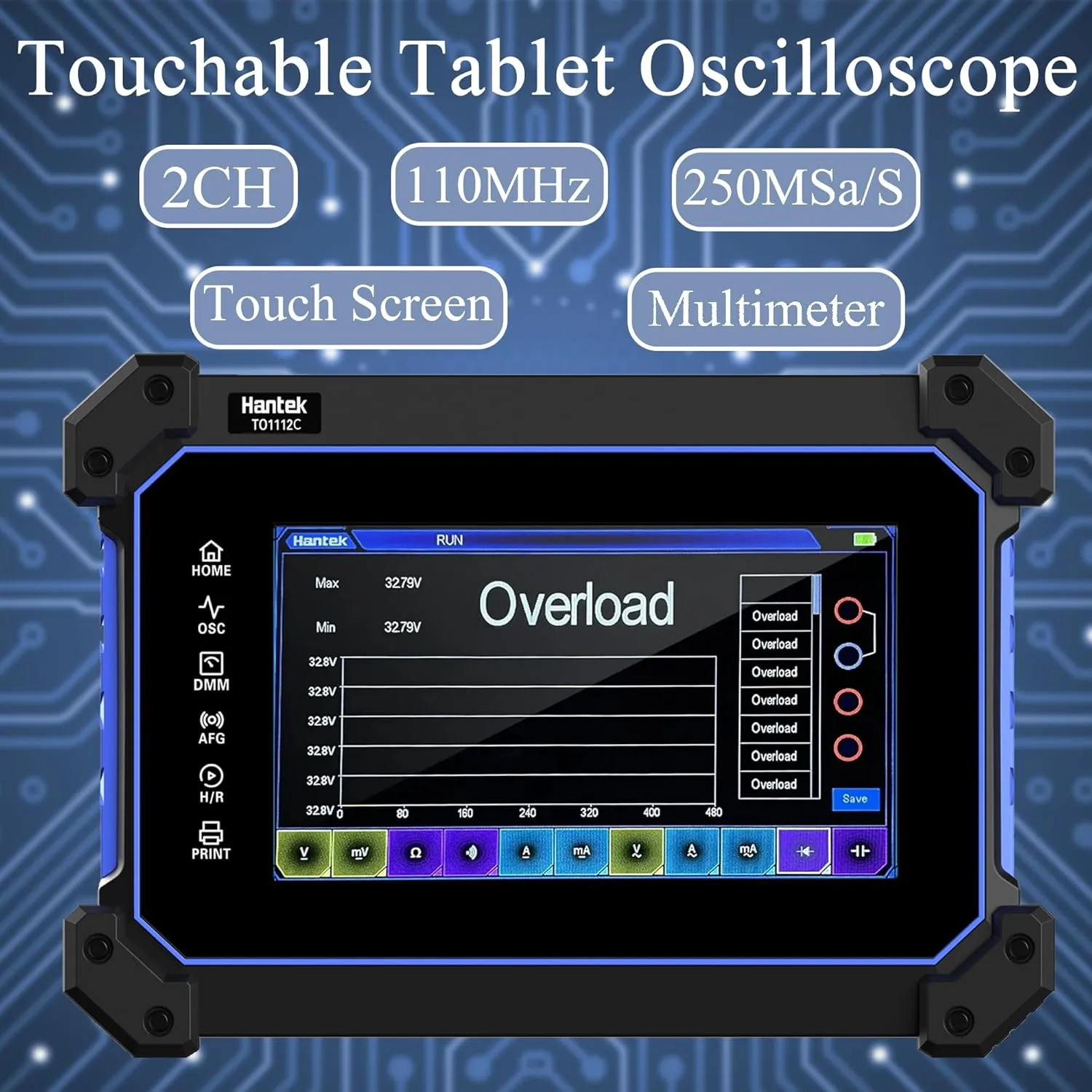

- Parameter: 2CH tablet oscilloscope, 110MHz bandwidth, 250MSa/s sampling rate, 8M depth storage; 8-bit vertical resolution, 5 trigger (Edge-triggered, Pulse Width, Video, Slope and Timeout Trigger);
- Multimeter: 4000 points, support Voltage / Current / Resistance / Capacitance / Diode / ON-OFF measurement; Maximum Input Voltage: AC:600V, DC:600V; Maximum Input Current:AC:10A, DC:10A; Diode: 0~1.0V;
- Multi-Touch Screen: 7” TFT LCD more intuitive, touchable screen, more convenient; A user-friendly interface, and a satisfactory interaction experience; Adjustable brightness and sound; Set auto-lock time and shutdown time;
- Built-in detachable lithium battery (3.7V 2600mAh*2 in parallel), full power and extended endurance; support fast charging(with 18W power adapter) ;
- Adjustable suspension bracket(free-hands), adapt it to your demand; design with anti falling and anti-seismic function to protect the device, sturdy and durable;
- Application: Built-in multiple functions, like data storage, frequency meter, FFT spectrum analyzer, math operations, 42 measurements, XY mode, 5 trigger and so on; Suitable for automotive testing, laboratory courses, etc.
- Note: TO1112C ONLY Built-in Oscilloscope & Multimeter functions !!! NOT SUPPORT generator function !!!
