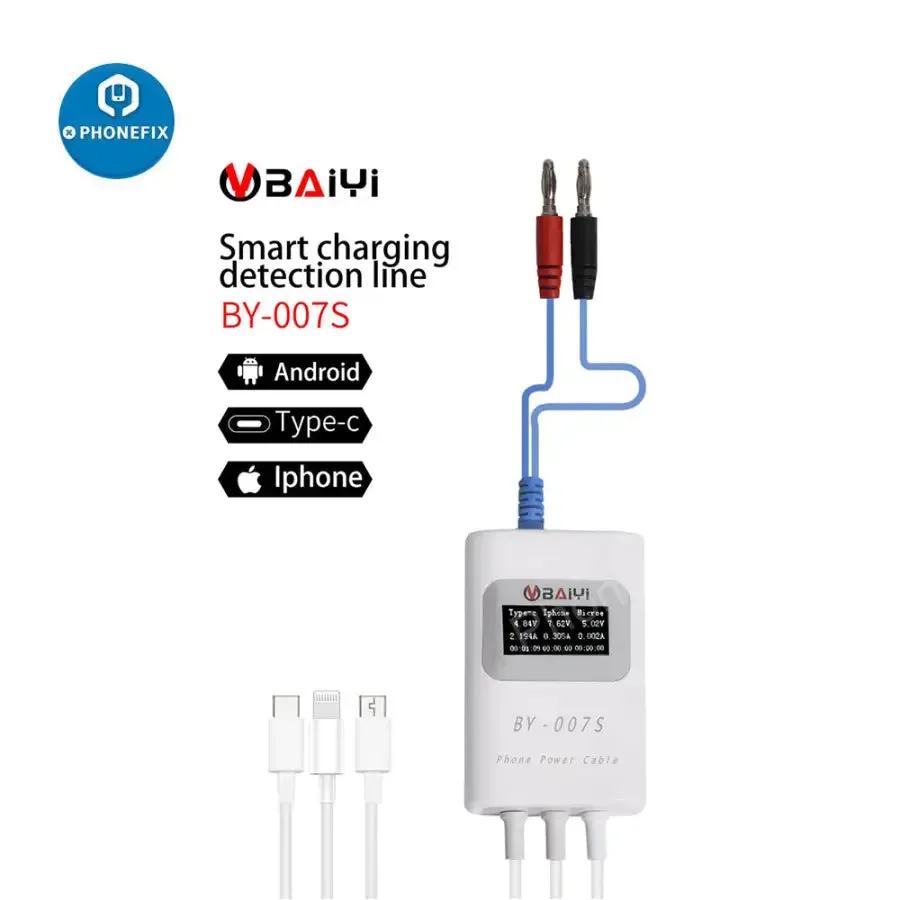

BY-007S Mult-Function Smart Charging Detection Line. BY-007S Power Cable With TYPE_C Lightning Micro-USB Port For Mobile Phone Tablets MacBook.

Instructions:
Frist: The advantages compared to other chargers and power cables.
1. Support  Type_C, Lightning, Micro USB three device interface input.

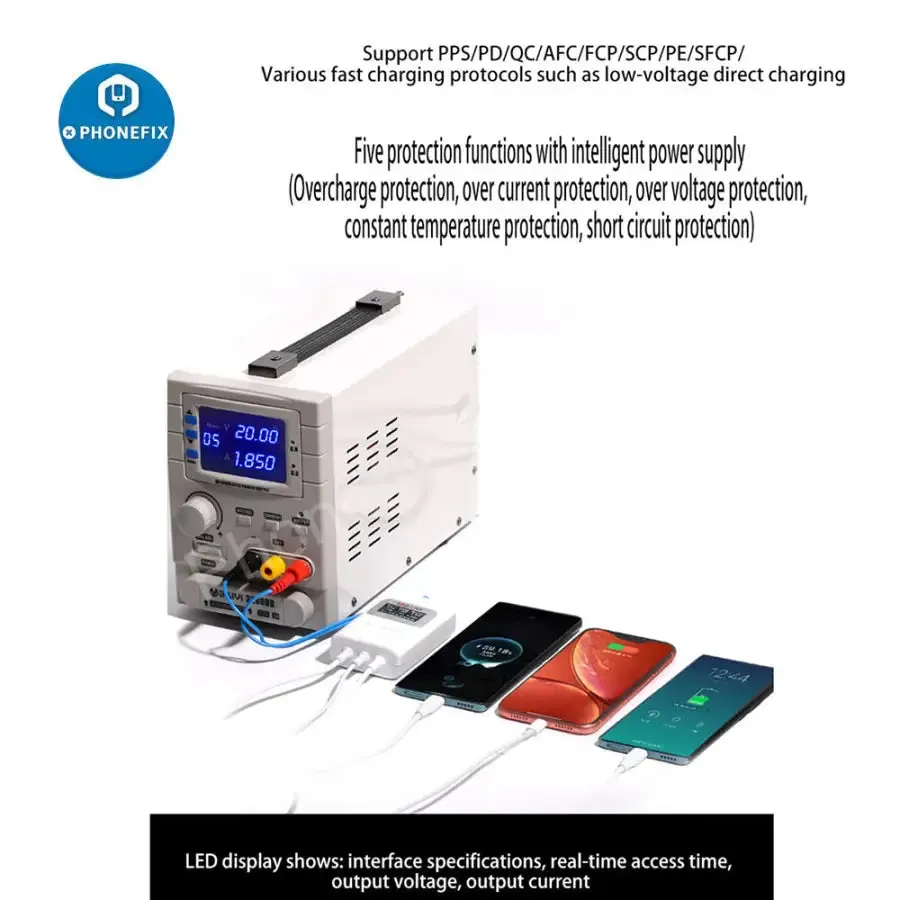

2. Support multiple fast-charging protocols such as PPS/PD/QC/AFC/FCP/SCP/PE/SFCP/low-voltage direct charging.
3. Support output Type_C interface 100W, QC 3.0 fast charge protocol.
4. Support output voltage 5V, 9V, 12V, 20V voltage, the device automatically recognizes the required voltage output.

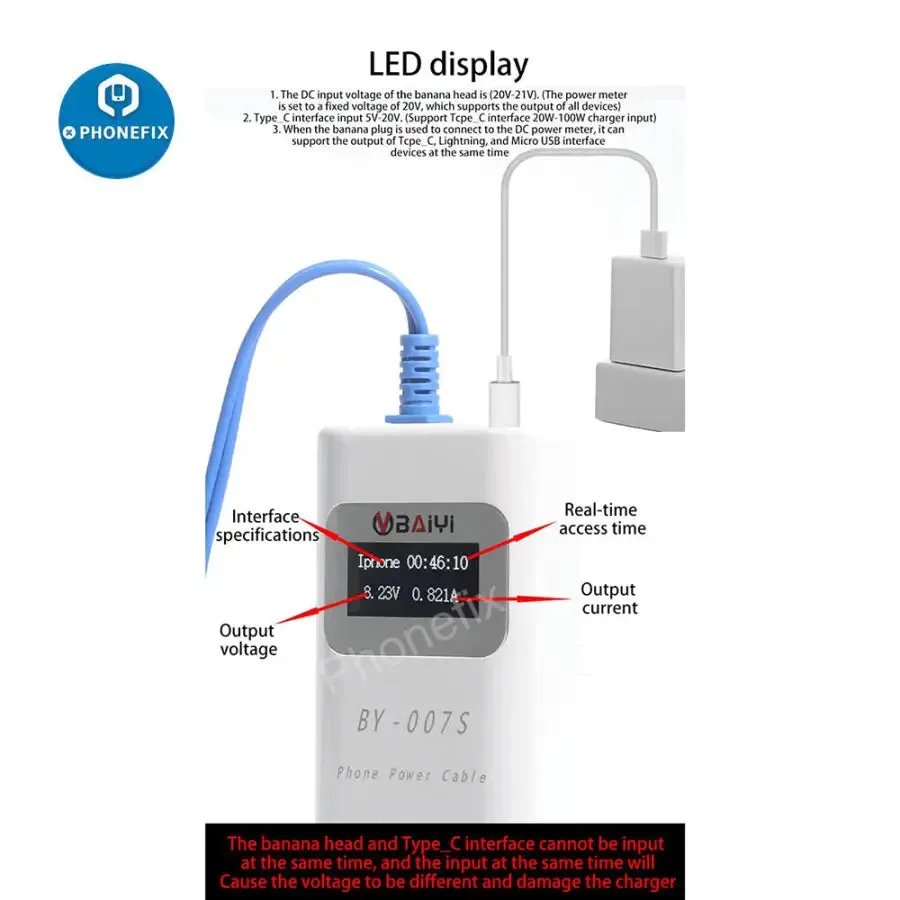

5. LED display shows: Interface model, Real-time use time, Output voltage, Output current.
6. Five protection functions of intelligent power supply (overcharge protection, overcurrent protection, overvoltage protection, constant temperature protection, short circuit protection).

Second: Set two inputs at the power input.
1. The input voltage of the DC power supply is 20V. (The power meter is set to a fixed voltage of 20V, which supports the output of all devices).
2. Type_C interface input 5V-20V. (Support Tcpe_C interface 20W-100W charger input).
3. When connected to a DC power meter, it can support Type_C, Lightning, and Micro USB interface device output at the same time.

Third: Including three power cords.

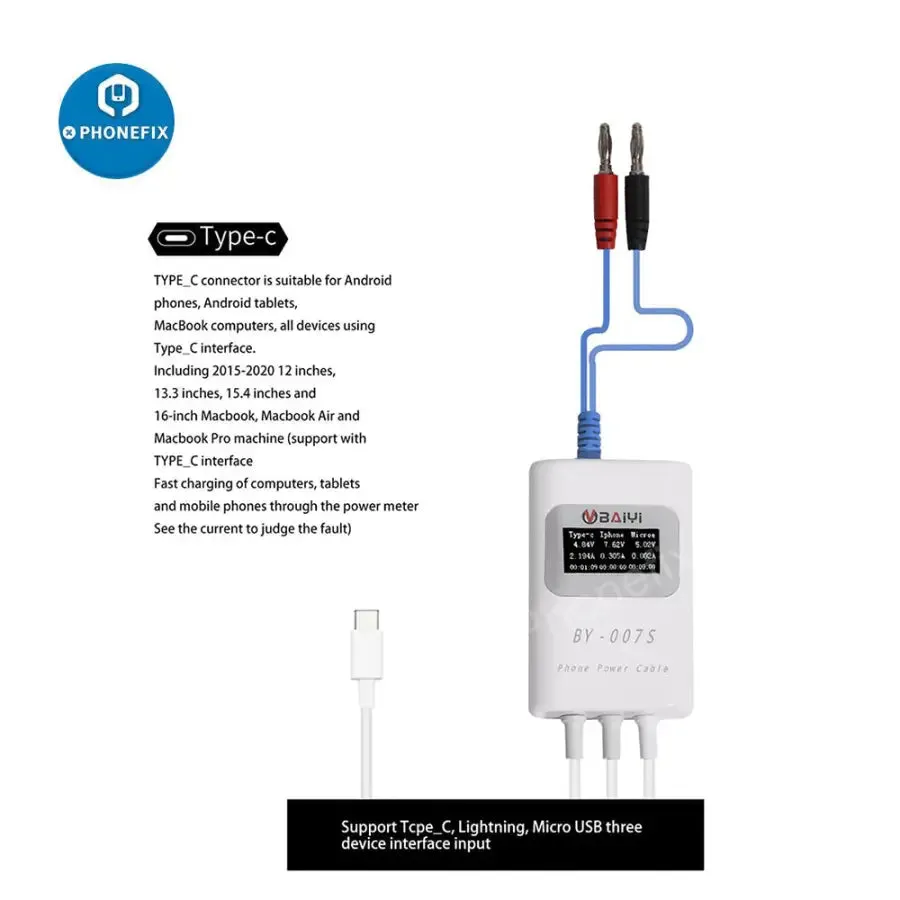

1. TYPE_C connector is suitable for Android phones, Android tablets, MacBook computers, and all devices with a Type_C interface.
Including 2015-2020 12-inch, 13.3-inch, 15.4-inch, and 16-inch Macbook, Macbook Air, and Macbook Pro machines (supports computers, tablets and mobile phones with TYPE_C interface fast charging, judge the fault by looking at the current through the power meter).

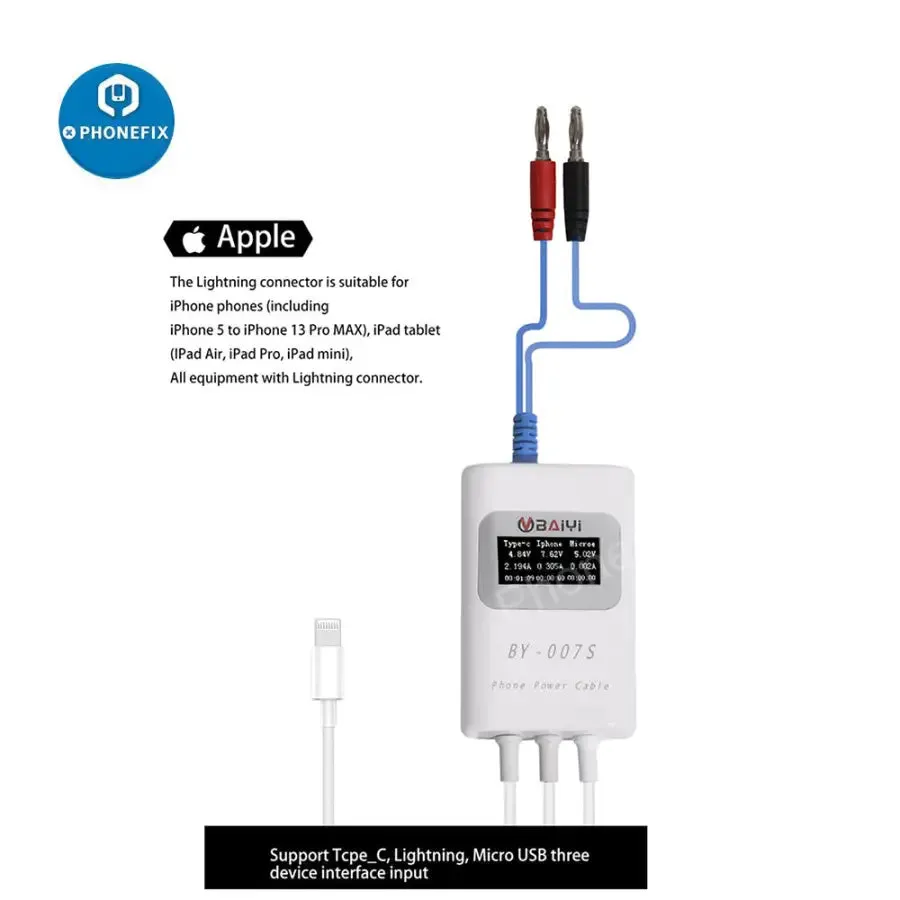

2. The Lightning connector is suitable for iPhone phones (including iPhone 5 to iPhone 13 Pro MAX), iPad tablets (iPad Air, iPad Pro, iPad mini), and all devices with Lightning connectors.

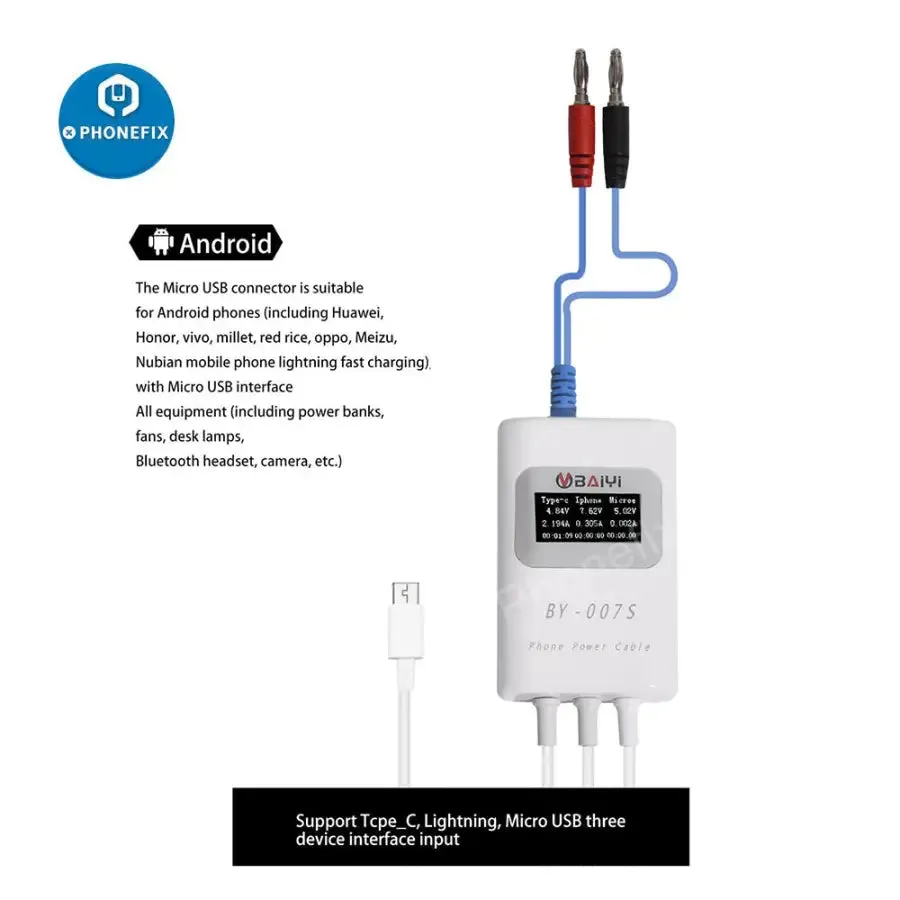

3. The micro USB connector is suitable for Android phones (including Huawei, Honor, Vivo, Xiaomi, Redmi, Oppo, Meizu, Nubia mobile phone lightning-fast charging), all devices with Micro USB interface (including power bank, fan, desk lamp, Bluetooth Headphones, cameras, etc.).

Fourth: Function and Role.

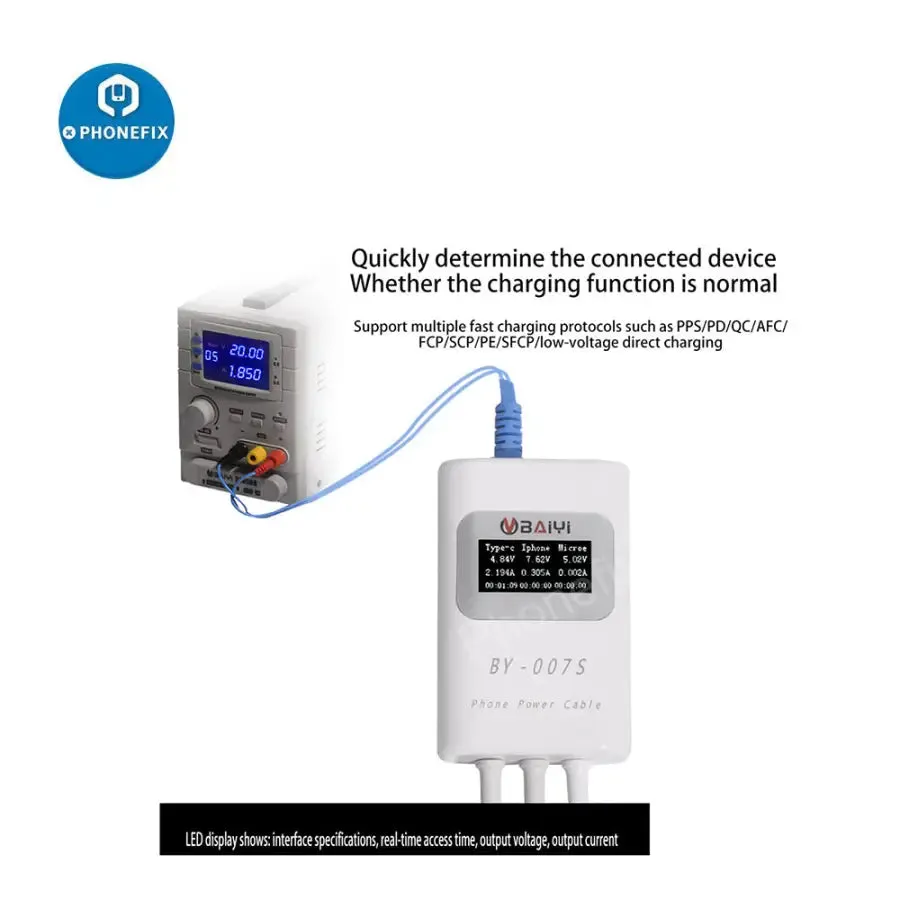

1. Quickly determine whether the charging function of the connected device is normal.

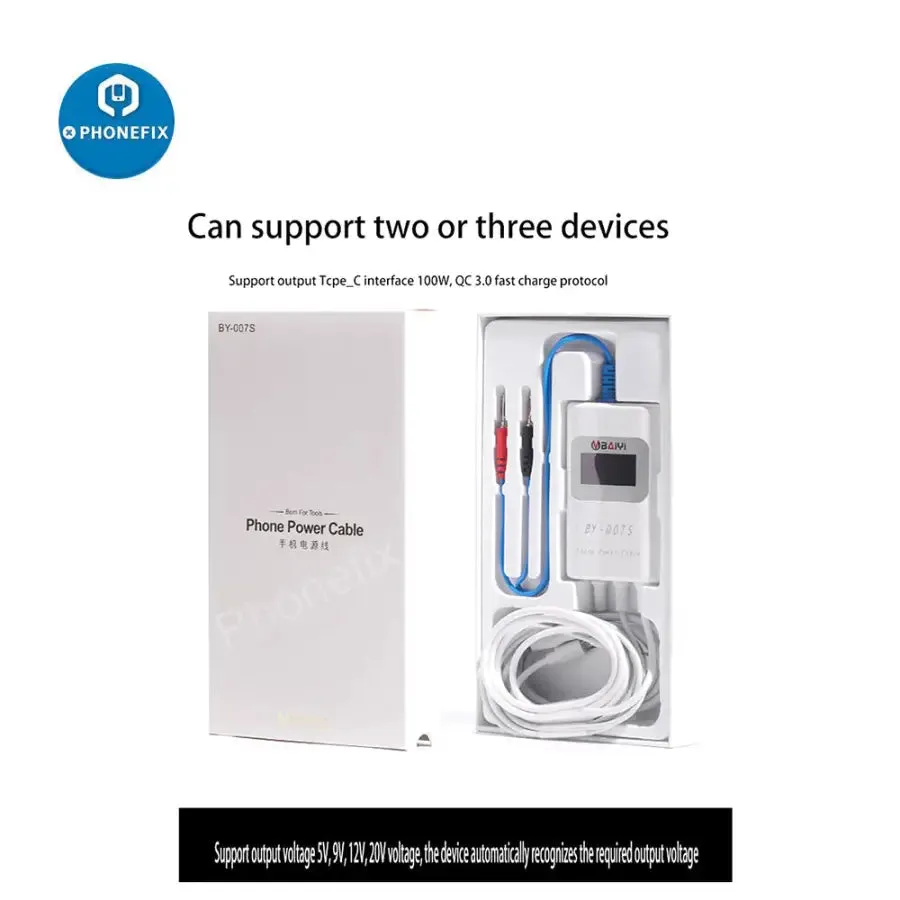

2. It can support simultaneous output of two or three devices.
3. Display the interface type of the connected device, you can judge whether the connected interface type is correct.
4. Display real-time access time, you can calculate the time required for the device to be fully charged.

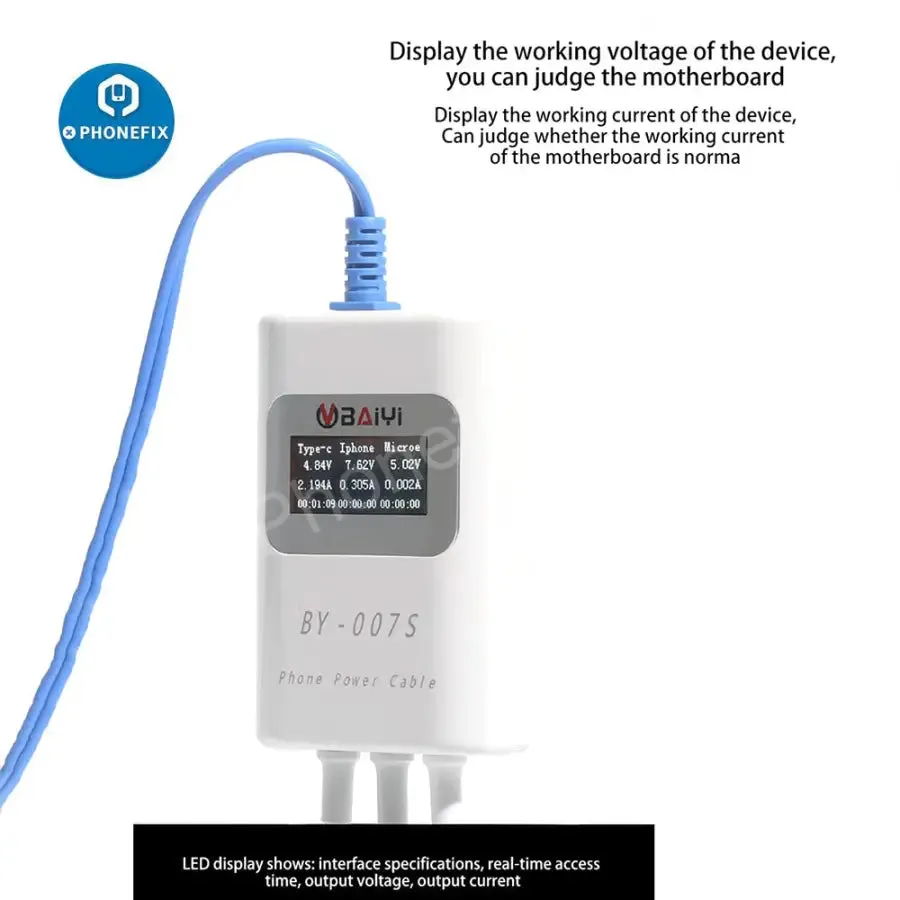

5. Display the working voltage of the device, you can judge whether the power supply of the motherboard is normal.
6. Display the working current of the device, you can judge whether the working current of the mainboard is normal.
