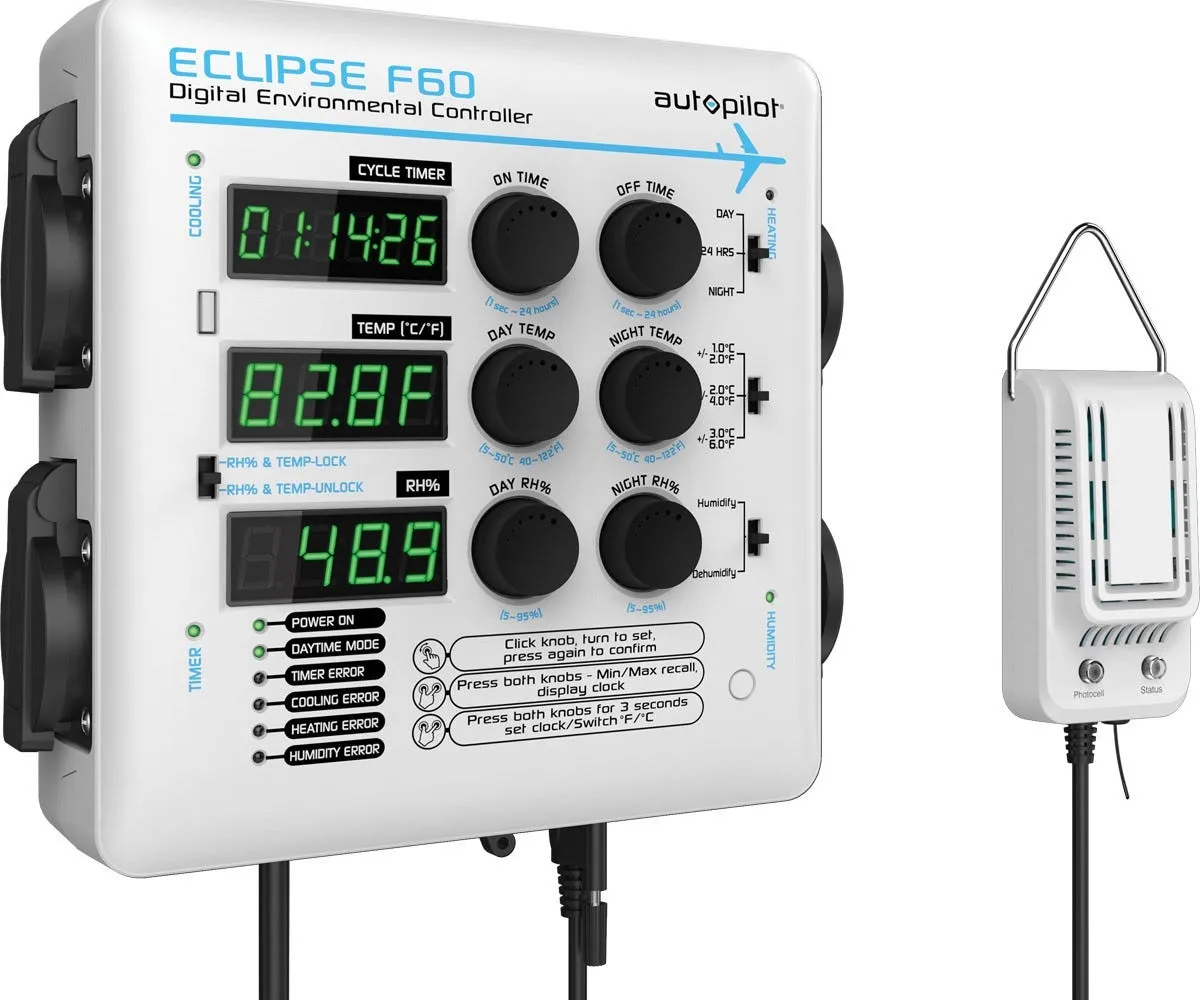

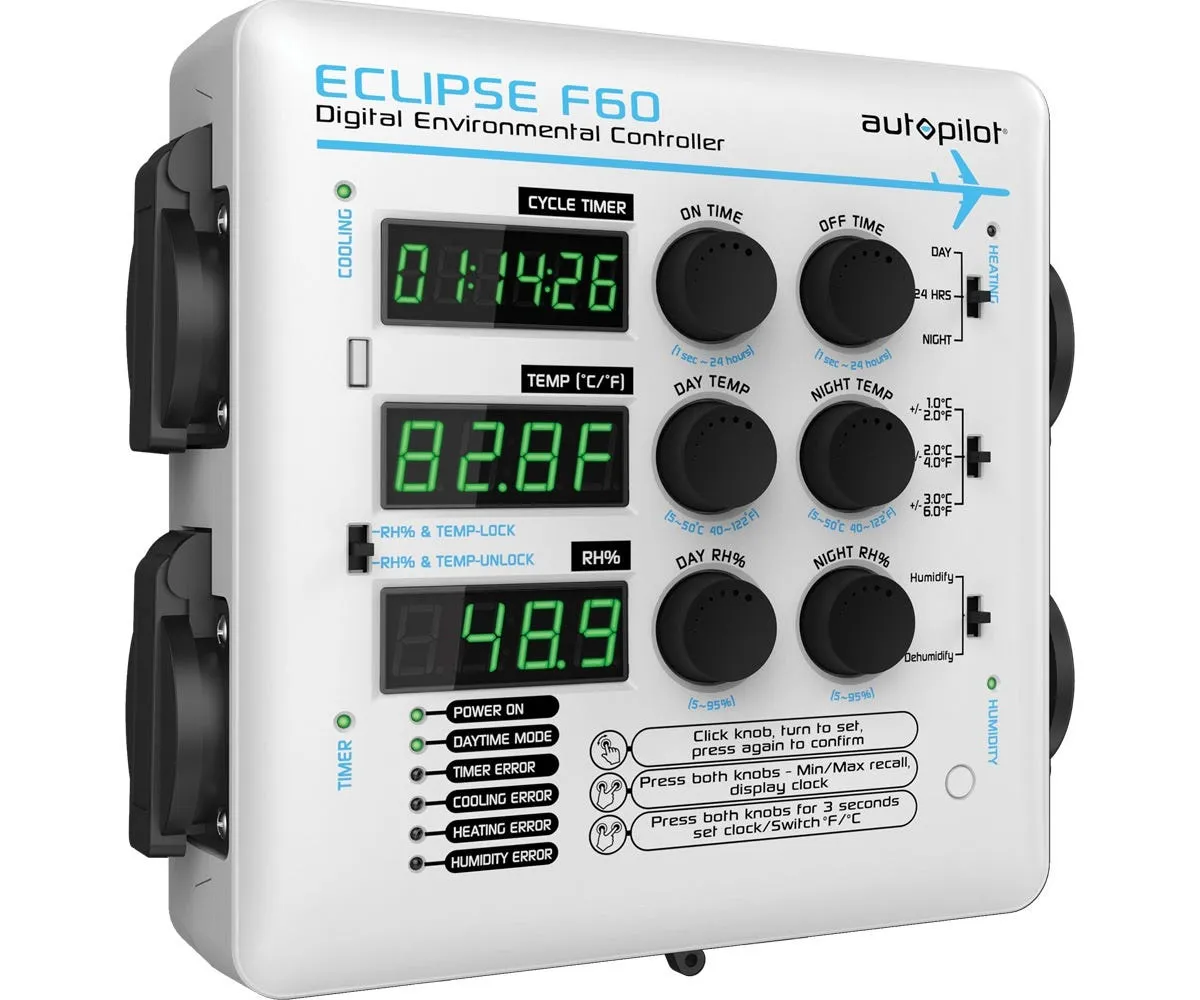

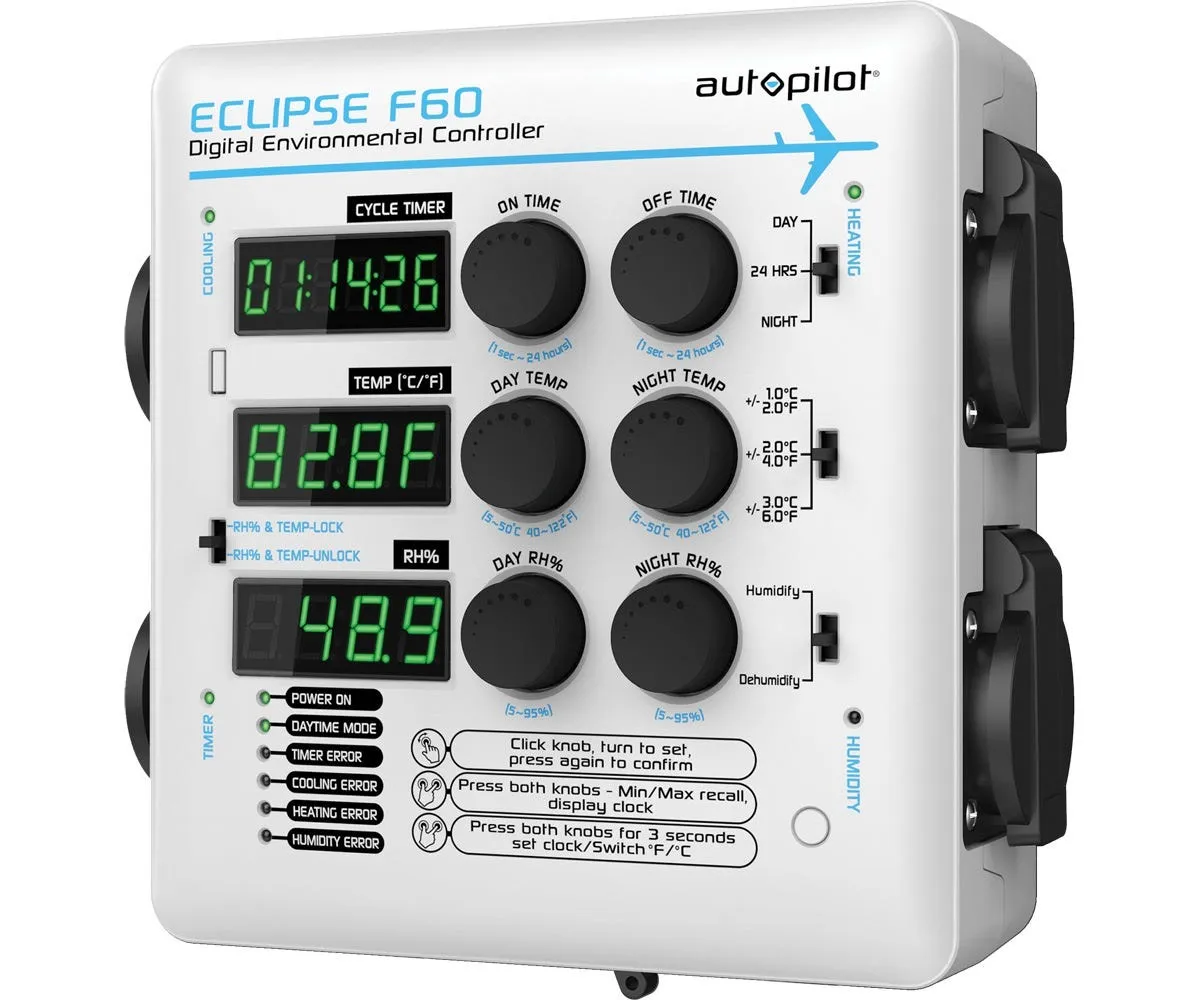

Autopilot ECLIPSE F60 Digital Environmental Controller

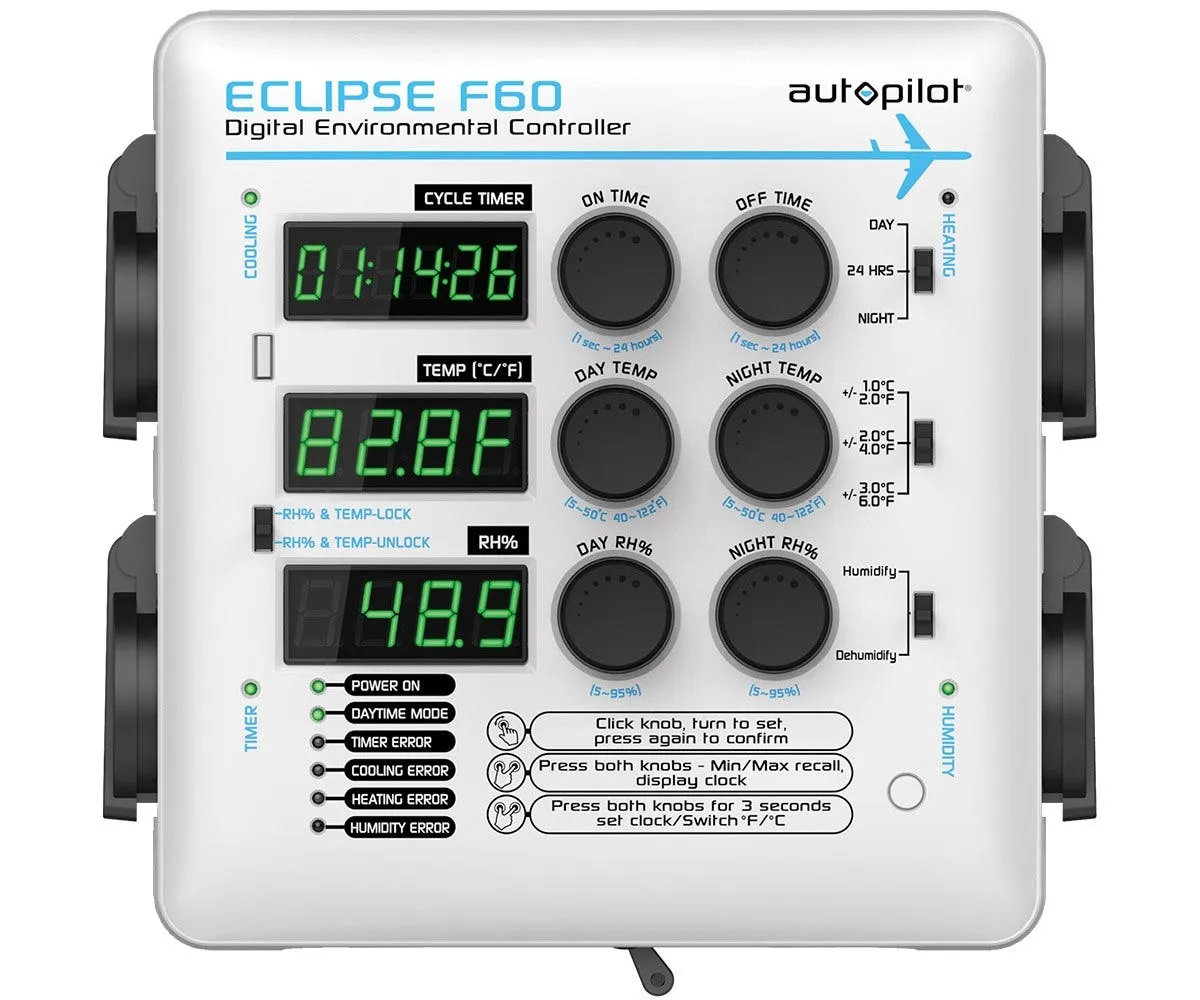

The Autopilot ECLIPSE F60 Digital Environmental Controller combines precise temperature and humidity control along with cycle timing to create an intelligent yet easy-to-use unit. Three digital screens continuously display current temperature, relative humidity, and a cycle timing countdown clock. LED lights indicate active modes and inform the user of any errors.
The Autopilot ECLIPSE F60 Digital Environmental Controller has four outlets for controlling cooling, heating, humidify/dehumidify, and a cycle timer. The three temperature and humidity outlets offer customizable day and night set points while the cycle timer outlet controls any device requiring a repeated on/off function during a 24 hour time period. All four outlets feature heavy duty protective covers that prevent atmospheric moisture from entering the device. A built-in data logger records minimum and maximum temperature and humidity levels.

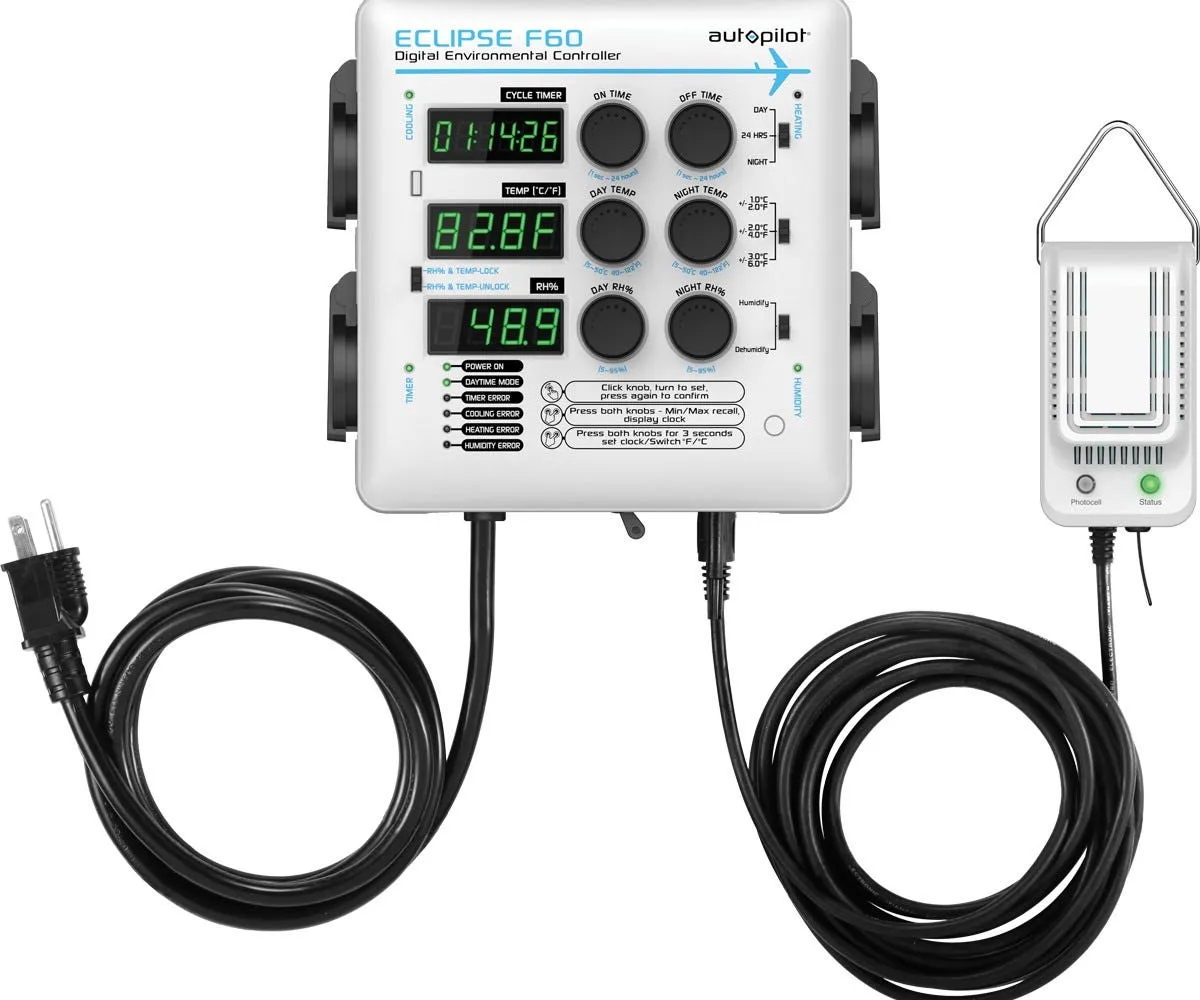

The Autopilot ECLIPSE F60 Digital Environmental Controller's sensitive and intelligent remote combination probe features a highly accurate temperature/humidity sensor and photocell for daylight detection. The probe can be placed up to 15 feet from the controller, and has been designed to resist EMI/EFI from electronic ballasts.
Mounts to both walls and grow tents. Two mounting kits are included with each controller.
ECLIPSE F60 Features:
- 4 outlets control temperature (heating & cooling), humidity and a cycle timed device
- Operates temperature and humidity outlets independently or synchronized
- Separate day/night temperature and humidity set points
- Cycle timer outlet modes: day only/night only/24 hours
- Cycle timer is programmable down to 1 second
- Records high/low temperature & humidity levels
- 15' temperature and humidity sensor with photocell
- LED mode and error indicators
- Internal battery keeps settings during unexpected power failure
- 14.5 max operating amperage, 120V
- 2 year warranty
- ETL-listed
ECLIPSE F60 Specifications:
- Max amperage 14.5 amps @ 120VAC 60 Hz
- Power cord length 6.5'/2 m
- Sensor cord length 15'/4.5 m
- Temp setting Adjustable 40-122 °F (5-50 °C)
- Temp deadband (hysteresis) Adjustable 2/4/6 °F (1/2/3 °C)
- Temp accuracy ± 2 °F/ ± 1 °C
- Humidity setting range 5%-95% rH
- Humidity accuracy ± 3% rH
- Humidity deadband (hysteresis) 5% rH
- Timer setting range 1 second to 24 hours
- Timer mode Day/Night/24 hours
- Altitude up to 6500' 2000 m
- Operating temperature 32 °F to 122 °F
- Maximum relative humidity 80%
- Pollution Degree 2
- IP degree IP 20
- Weight 3.5 lbs/1.6 kg
- Dimensions 8.0" x 3.3" x 7.5"/202 x 85 x 191 mm
